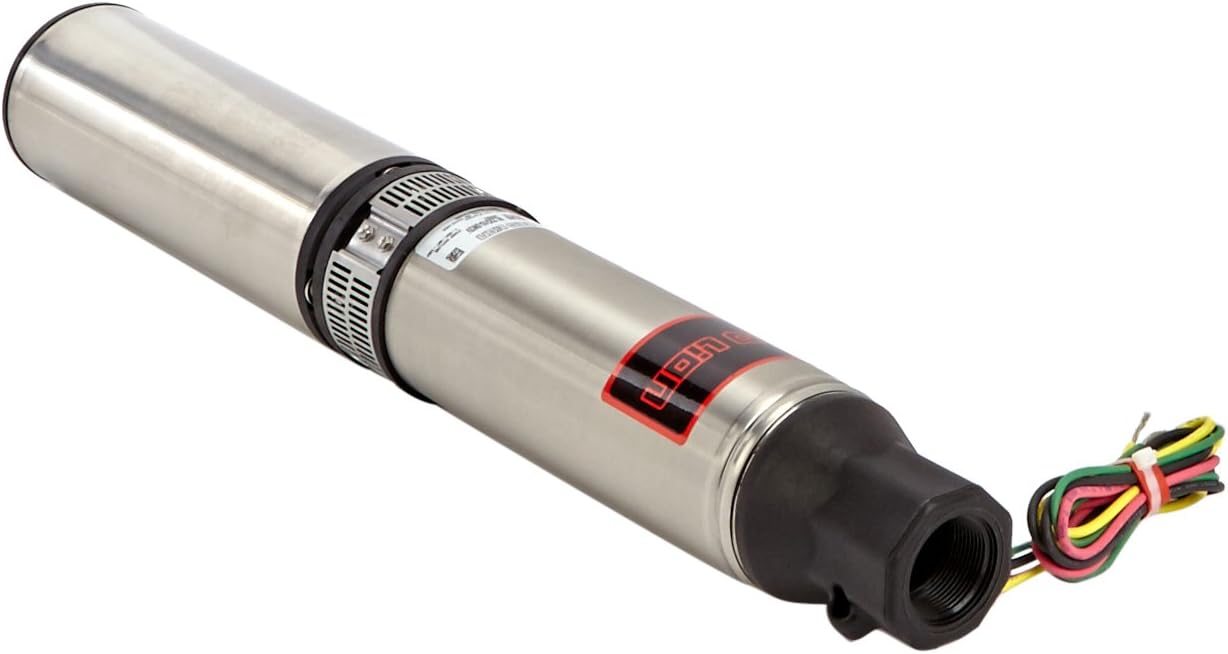

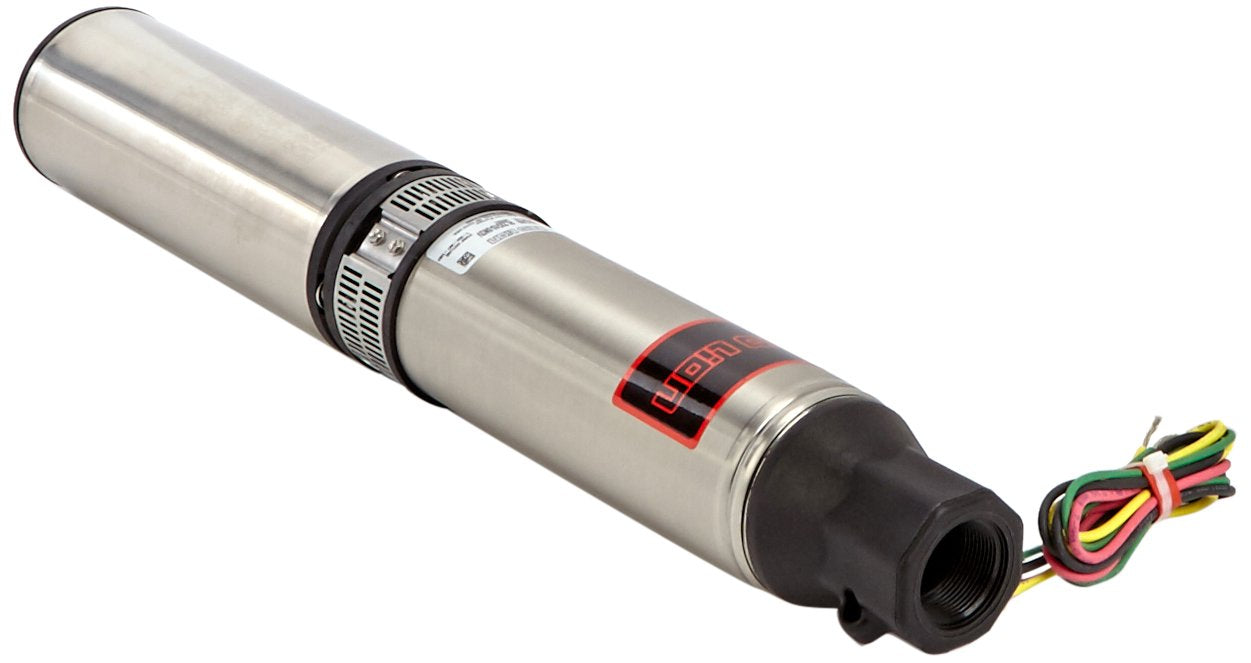

SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger wells with depths down to 260 feet; NSF/ANSI 372 certified for potable water
BUILT-INS built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers
1 HP MOTOR: 3-wire, 230-volt motor (not including the ground wire) delivers up to 22 GPM and draws water from 260 ft. (at 50 PSI delivers 22 GPM at a draw down of 219 ft.)

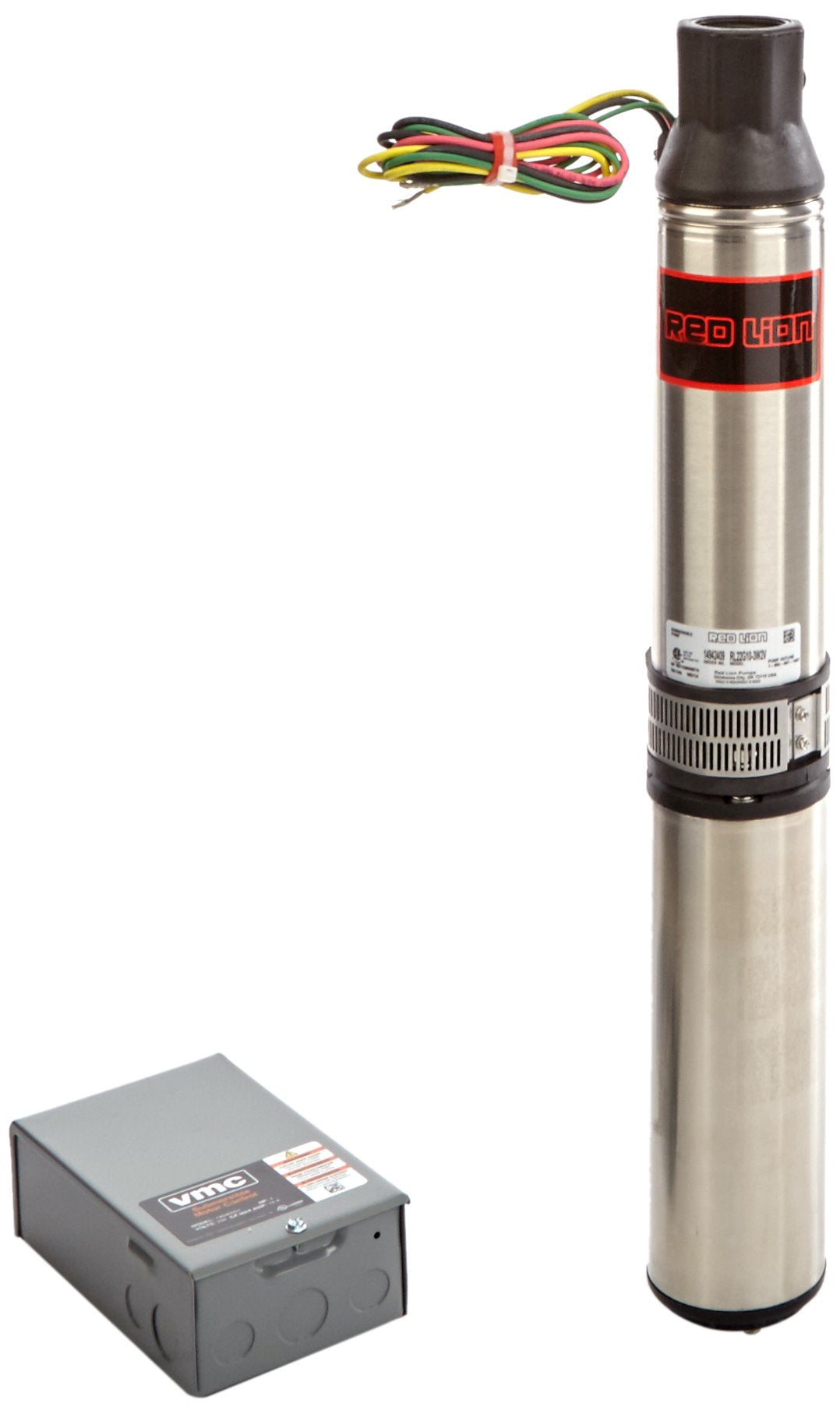

CONTROL BOX INCLUDED: Red Lion/VMC branded 1 HP, 0.75 KW, 230 Volt, 60 Hz, 8.2 running Amps, single phase, enclosure 3 indoor/outdoor use rated, UL listed in Canada and the USA
SPECIFICATIONS: 1 HP; 22 GPM; 3-Wire, 230 Volt, 10.4 running Amps; 1-1/4-inch FNPT discharge; stainless steel housing with thermoplastic discharge and motor bracket
