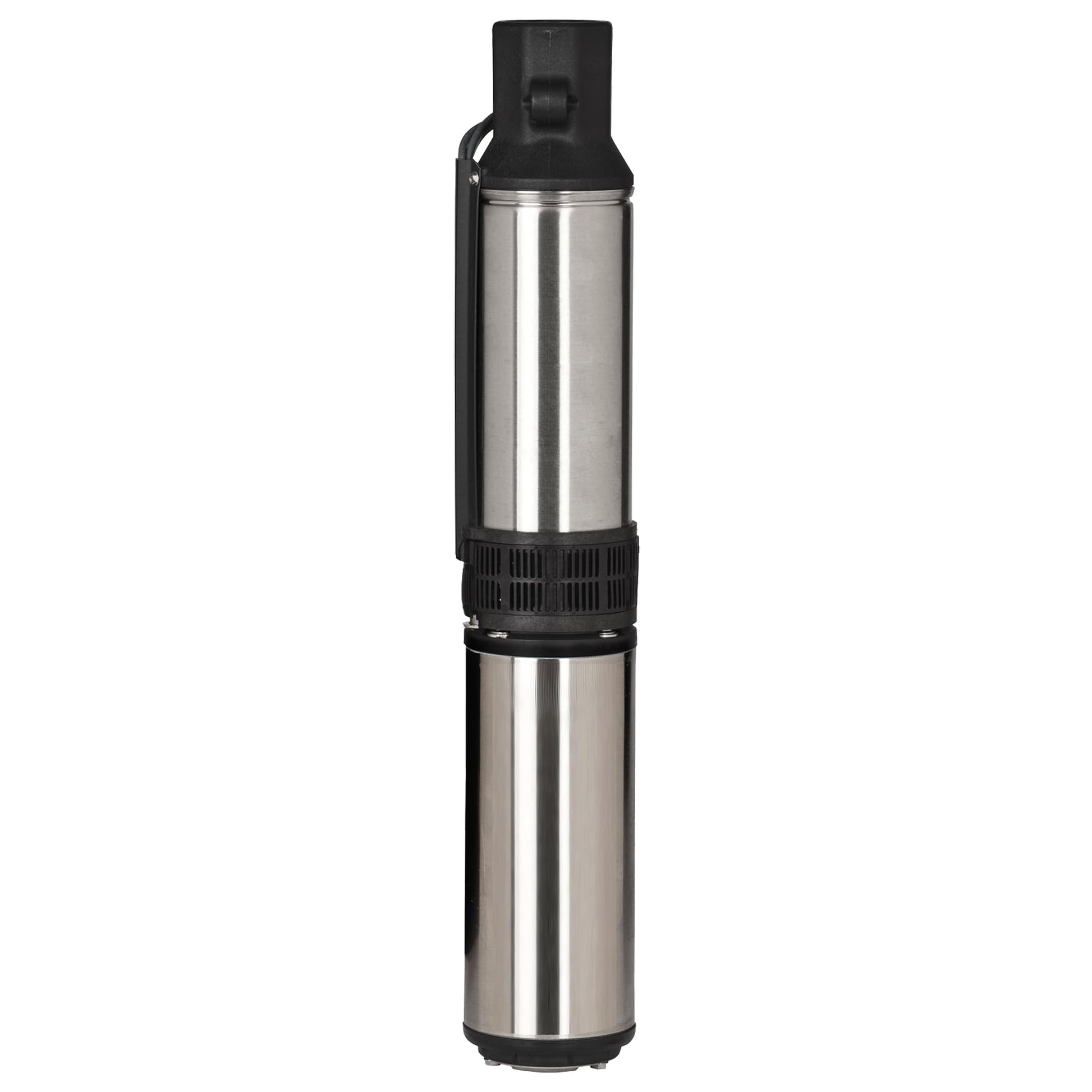

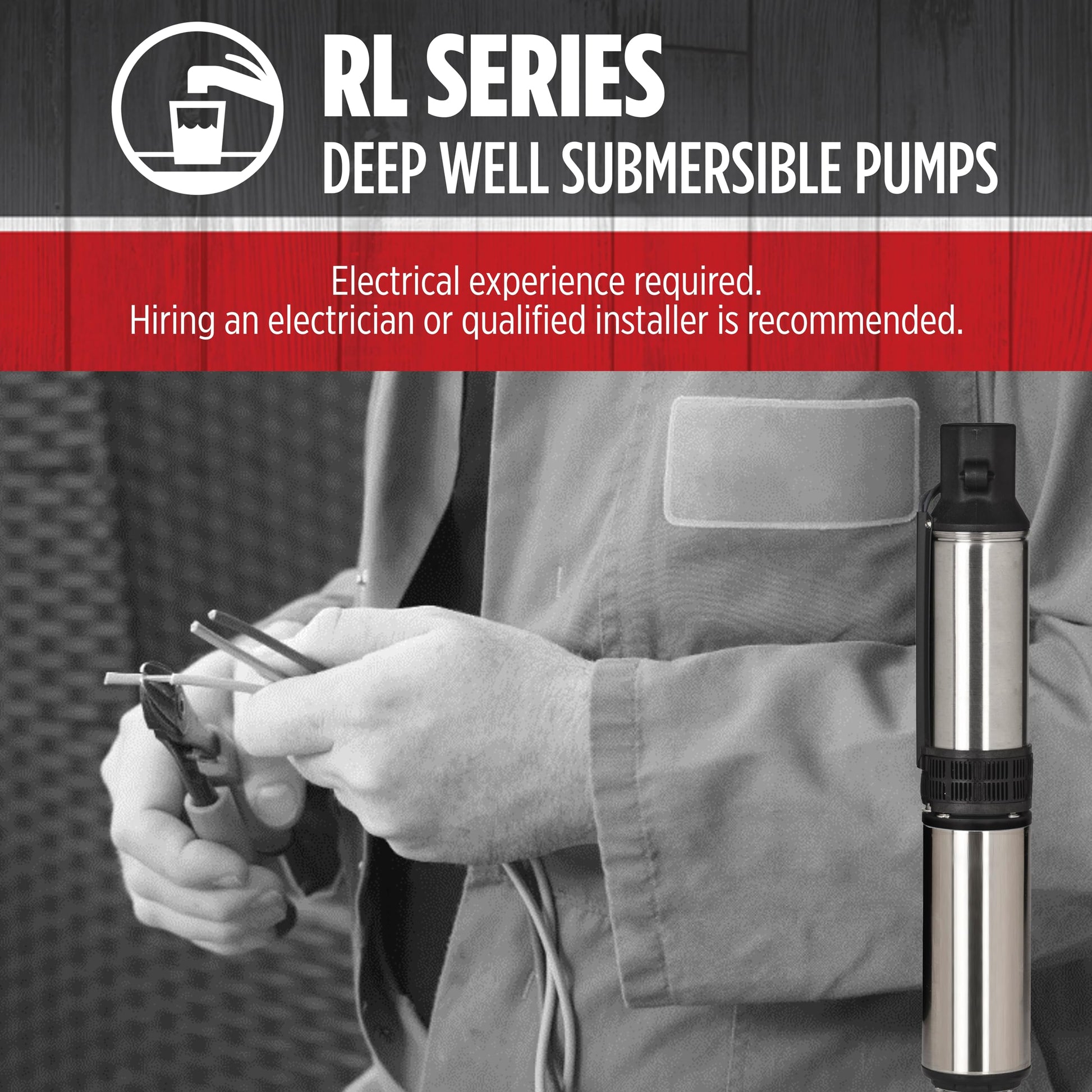

SUBMERSIBLE DEEP WELL PUMP: 3.9-inch diameter well pump fits 4-inch diameter driven wells or larger wells with depths down to 548 feet; NSF/ANSI 372 certified for potable water

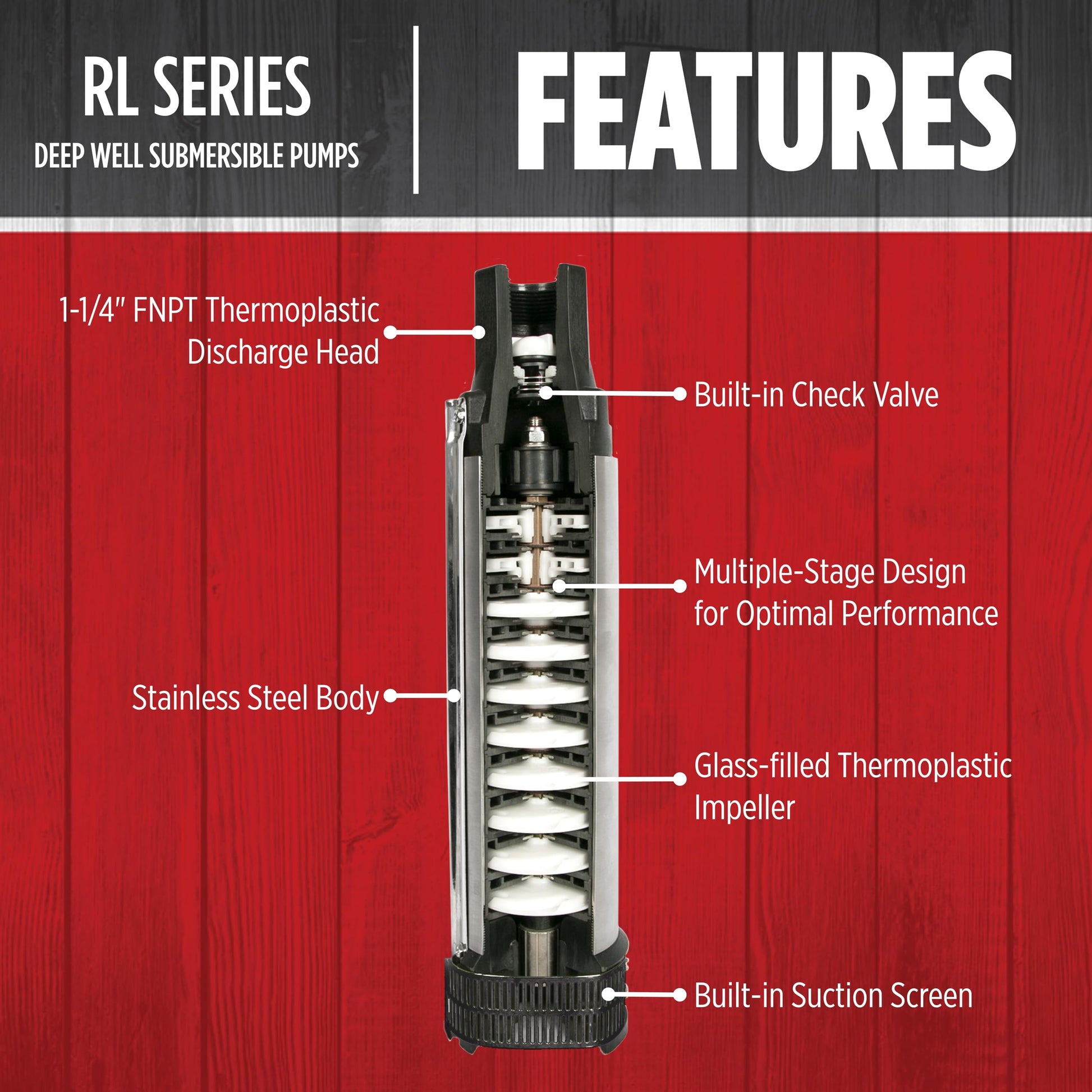

BUILT-INS built-in check valve help keep pump from rapid cycling and extends the motor life; built-in suction screen helps keep debris out protecting the impellers

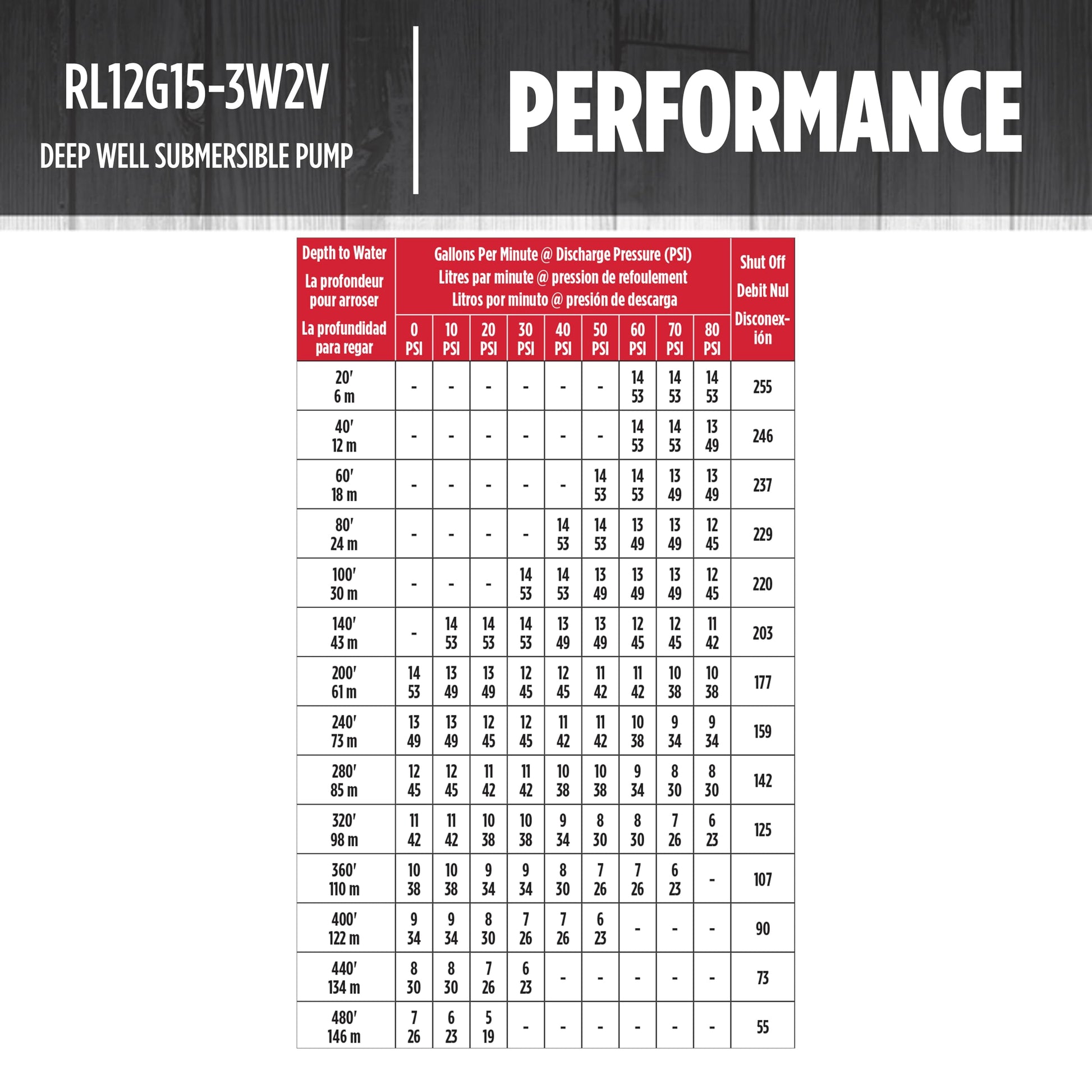

1-1/2 HP MOTOR: 3-wire, 230-volt motor (not including the ground wire) rated for up to 12 GPM and draws water from 548 ft. (at 50 PSI delivers 12 GPM at a draw down of 448 ft.)

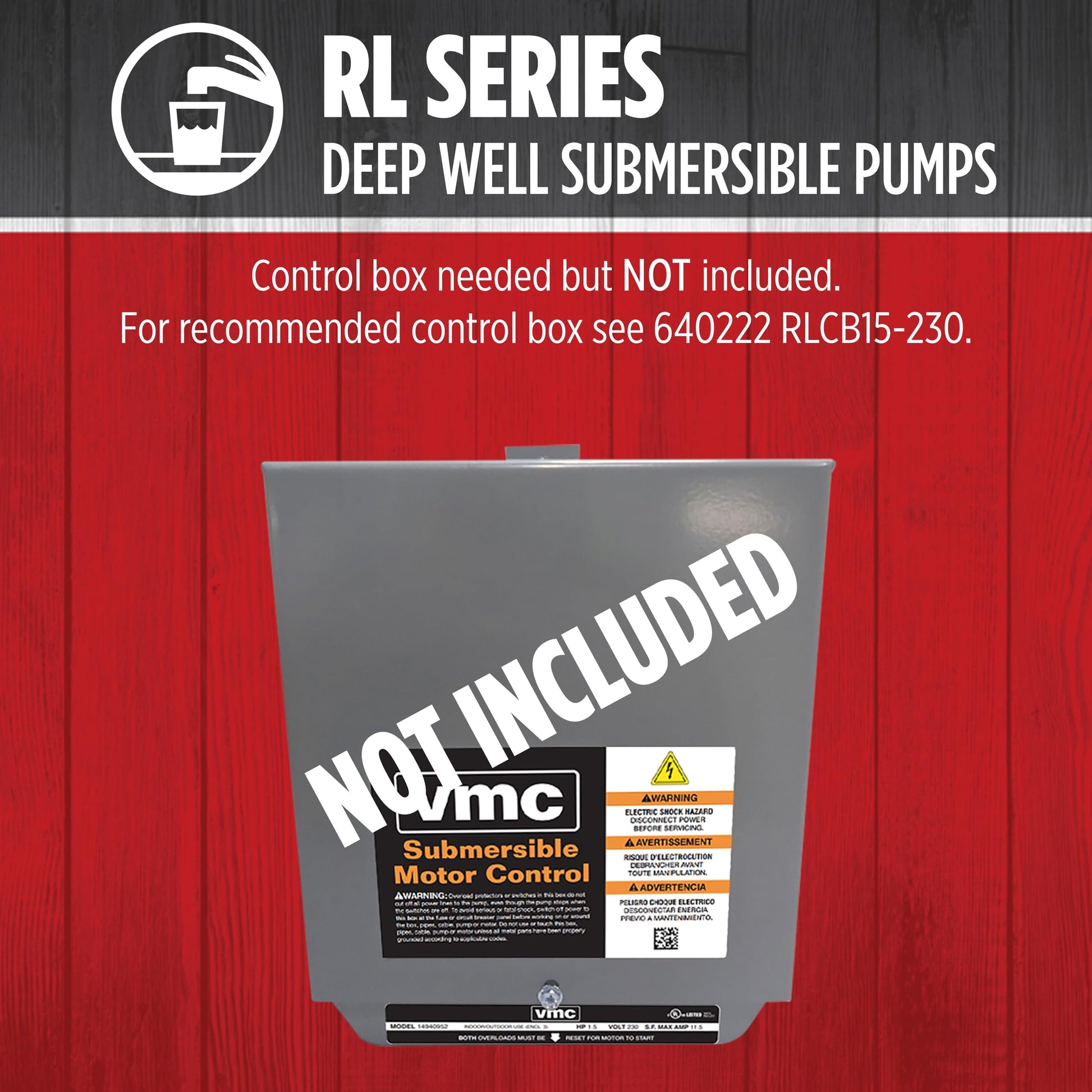

Control Box not included (see Red Lion RLCB15-230, 640222)

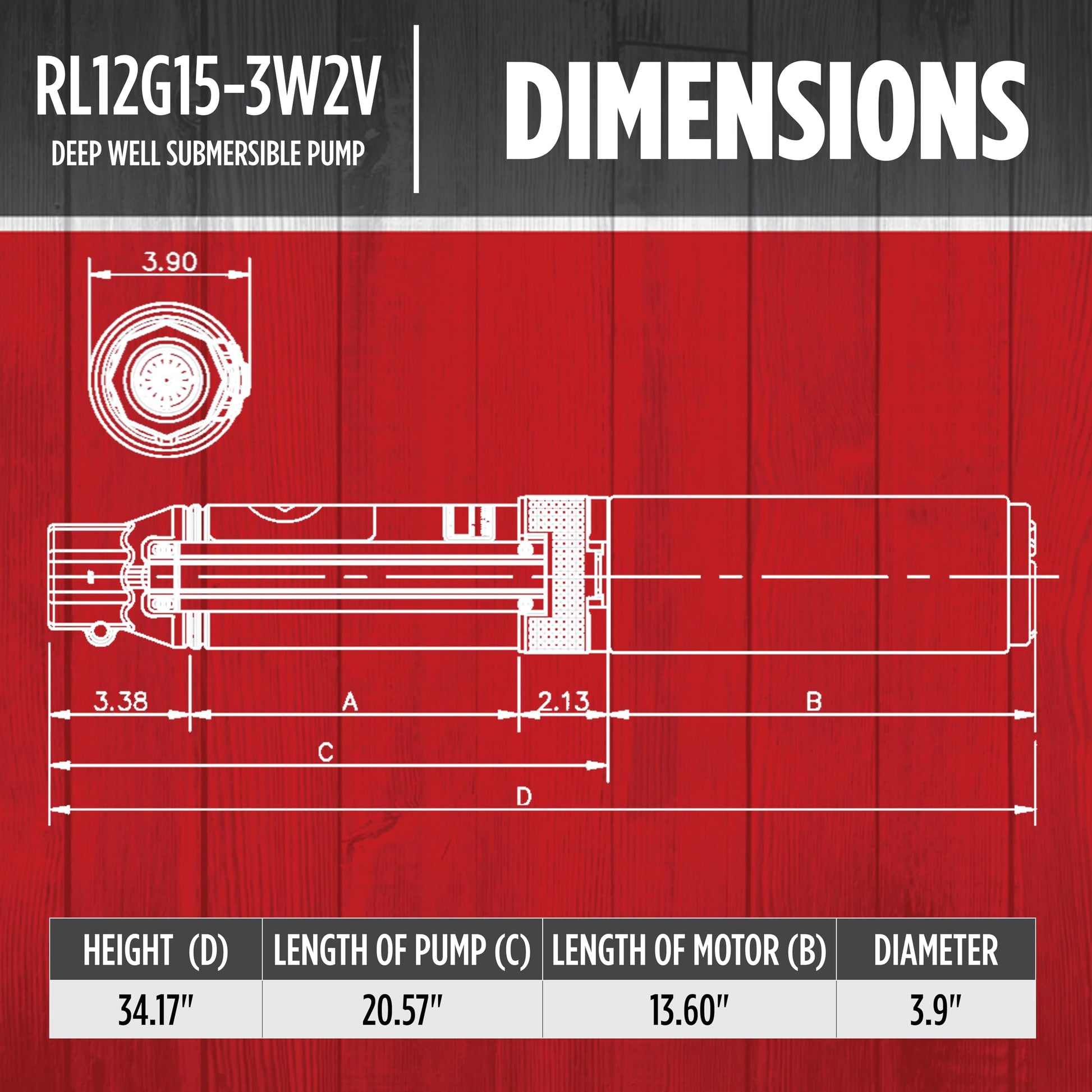

SPECIFICATIONS: 1.5 HP; 12 GPM; 3-Wire, 230 Volt, 11.5 running Amps; 1-1/4-inch FNPT discharge; stainless steel housing with thermoplastic discharge and motor bracket
