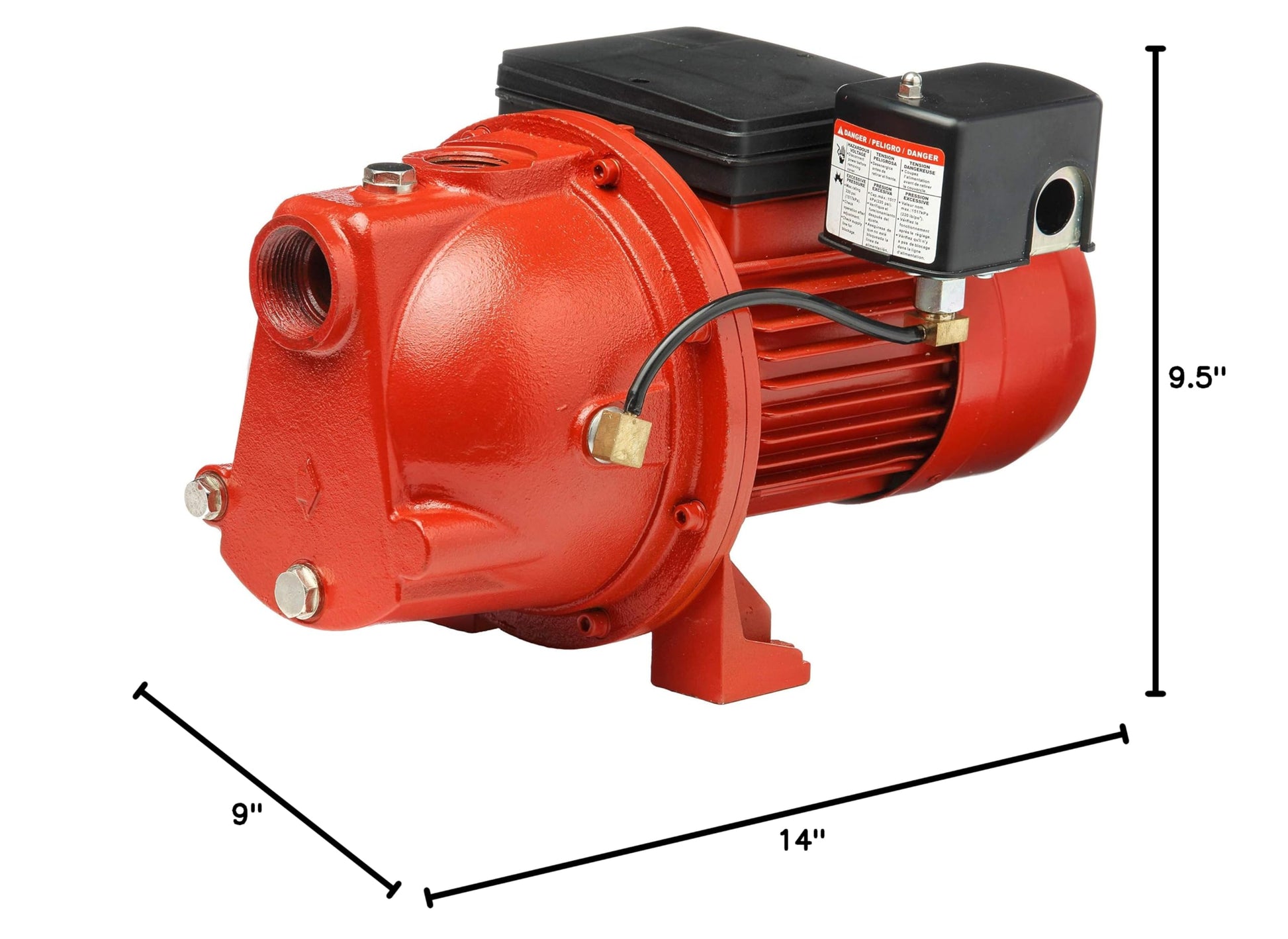

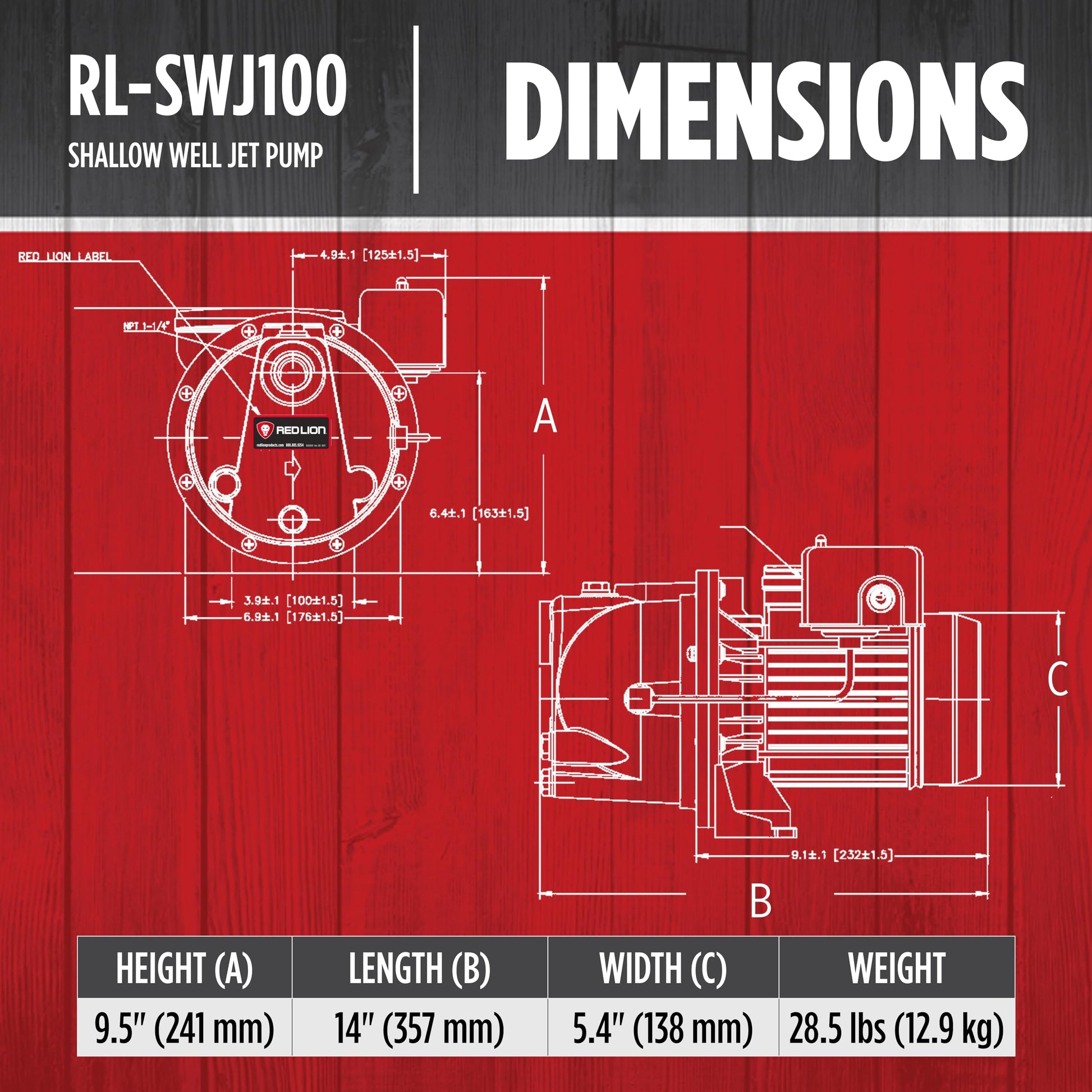

Package Dimensions: 17.8 x 12.7 x 12.4 inches

Brand: Red Lion

Features:

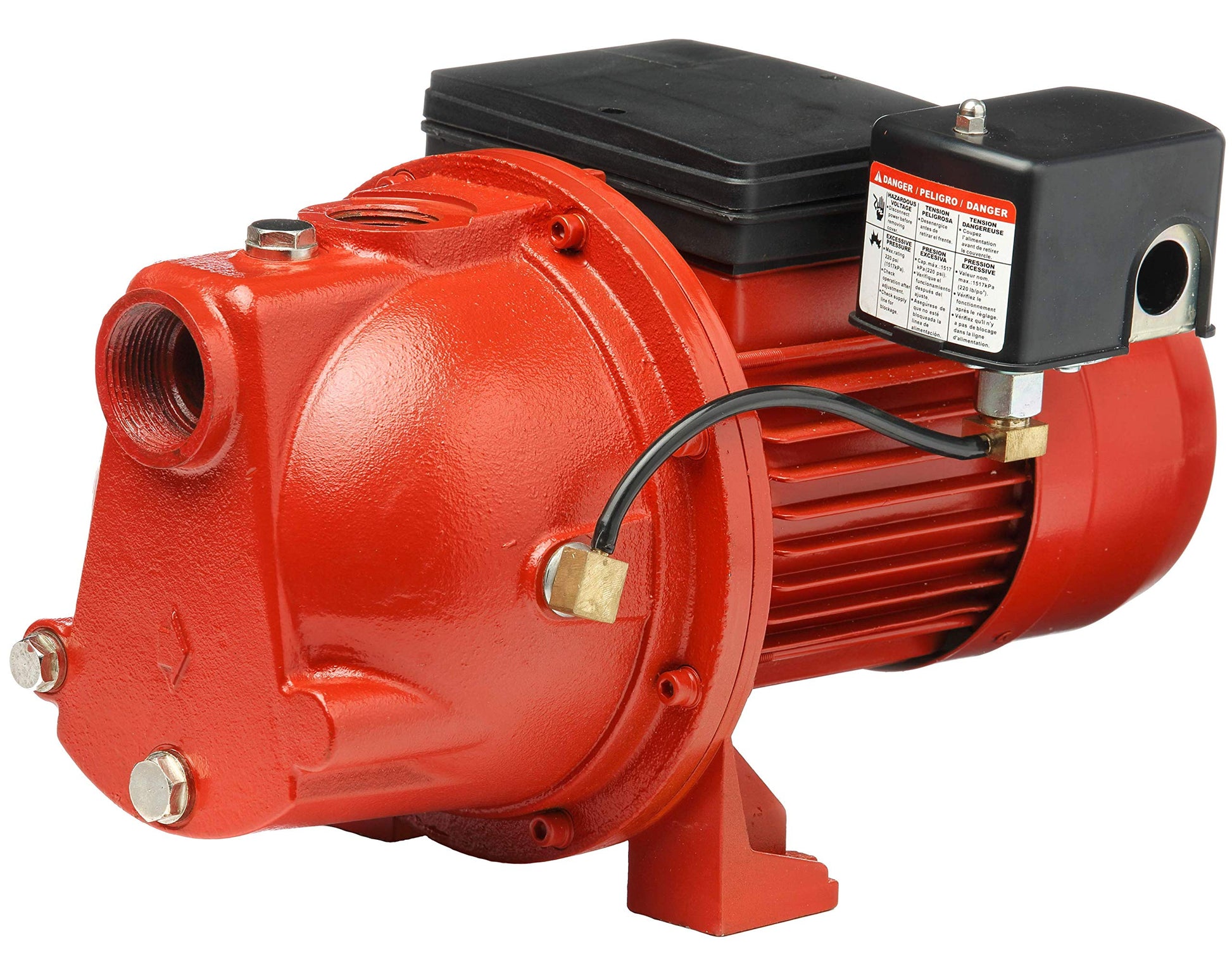

• SHALLOW WELL JET PUMP: for wells less than 25-feet deep; includes 30/50 pressure switch; self-priming after initial prime; 1 HP pump can draw up to 17 GPH

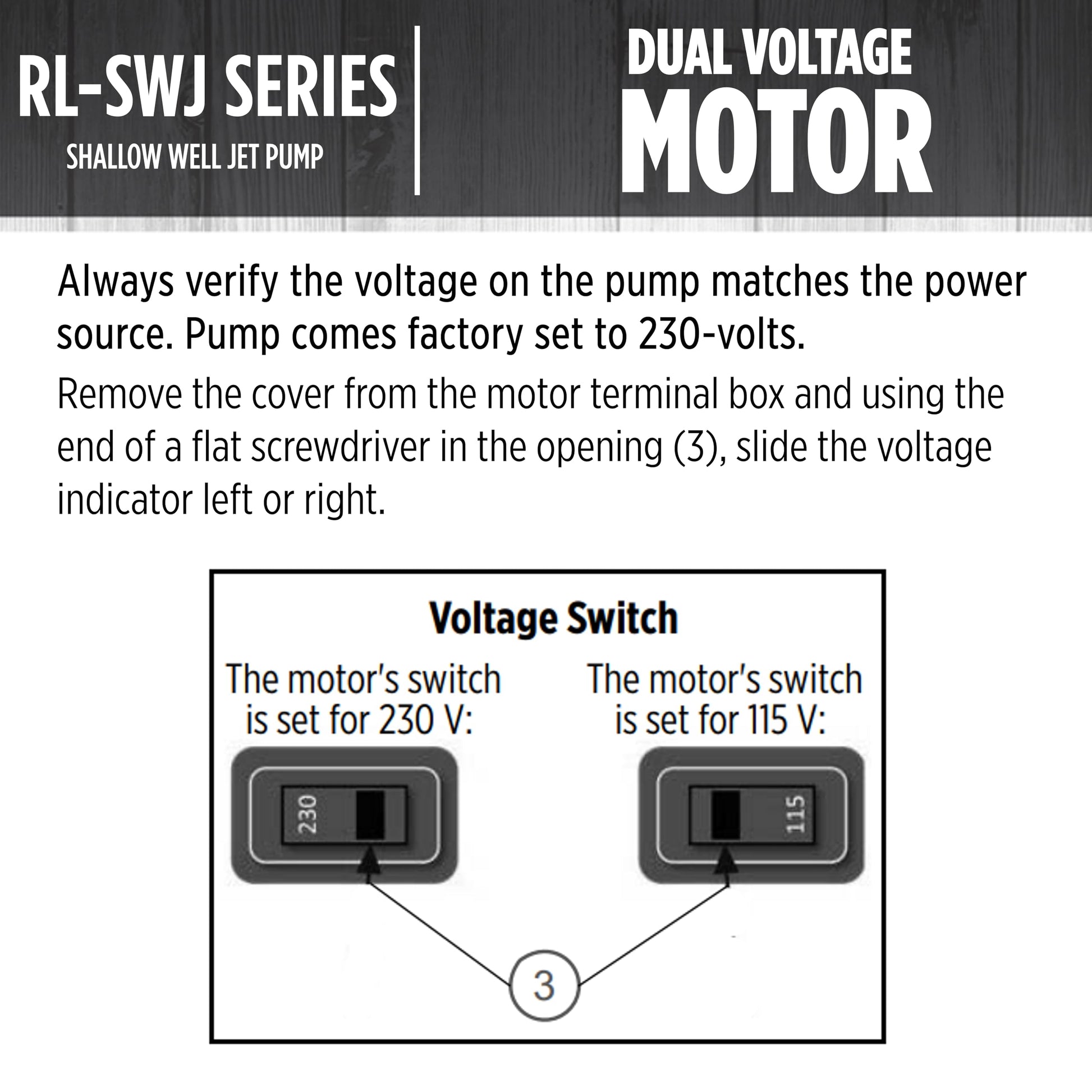

• DUAL VOLTAGE: 115/230 Volt heavy-duty motor, comes factory-set for 230 Volts but can easily be switched to 115 Volts; voltage must be selected to match incoming power source

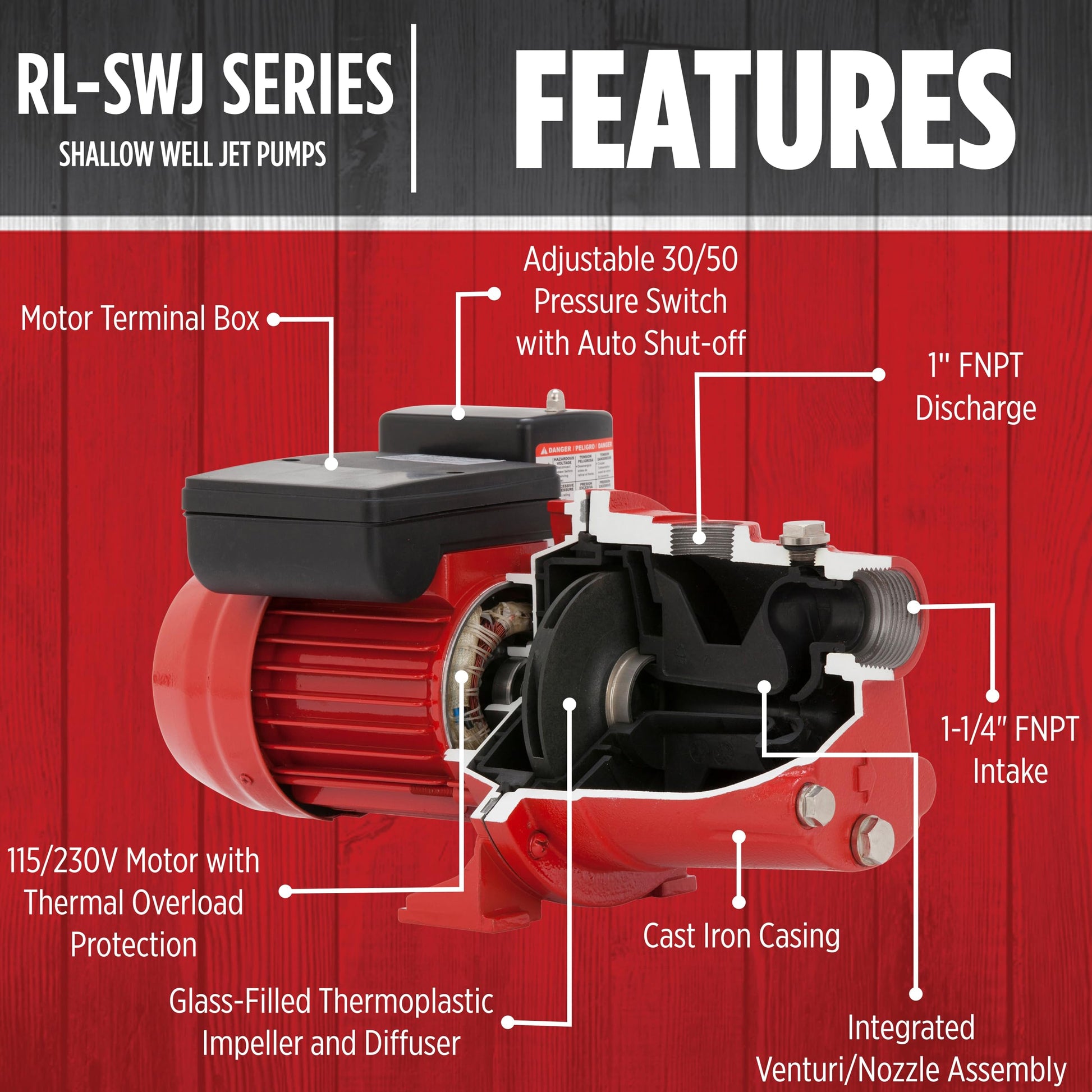

• BUILT TO LAST: Heavy-duty cast iron construction for years of service and reliability; impeller and volute made of glass-filled polyester
• SUCTION/DISCHARGE: 1-1/4-inch Female NPT threaded intake; 1-inch Female NPT threaded discharge

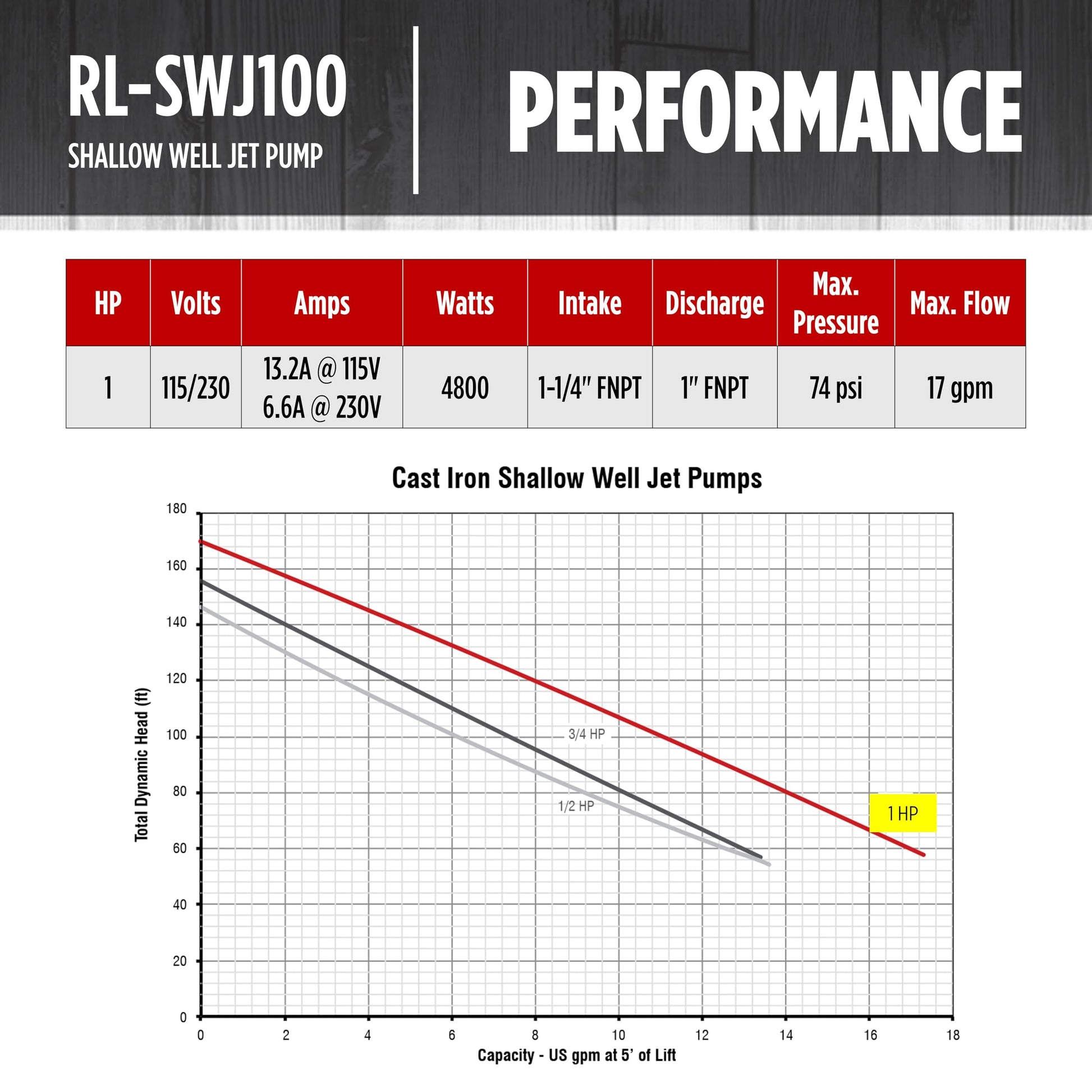

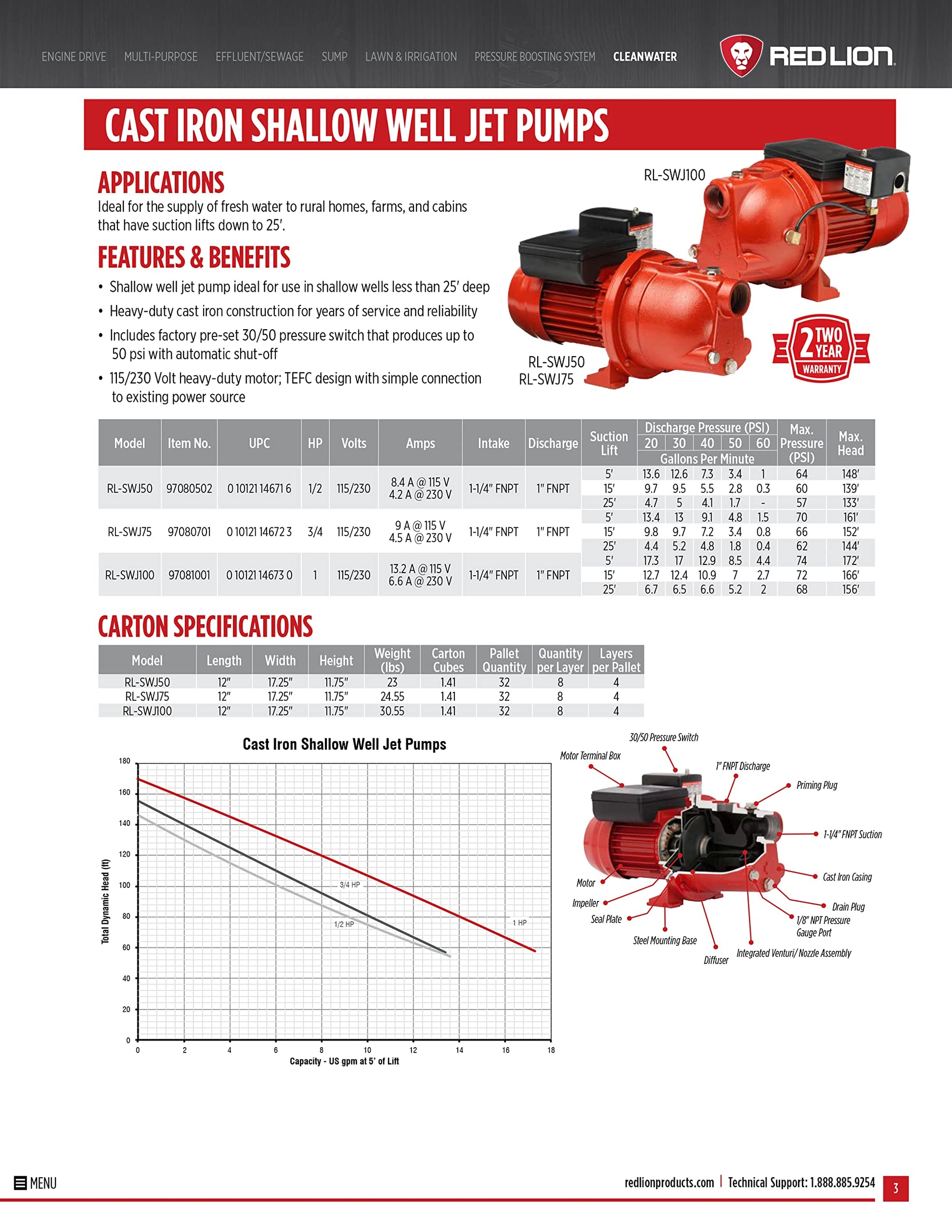

• SPECIFICATIONS: 1 HP, 115/230 Volts, 13.2 Amps at 115 Volts; 6.6 Amps at 230 Volts; Maximum pressure 74 PSI; 17 GPM at 30 PSI
