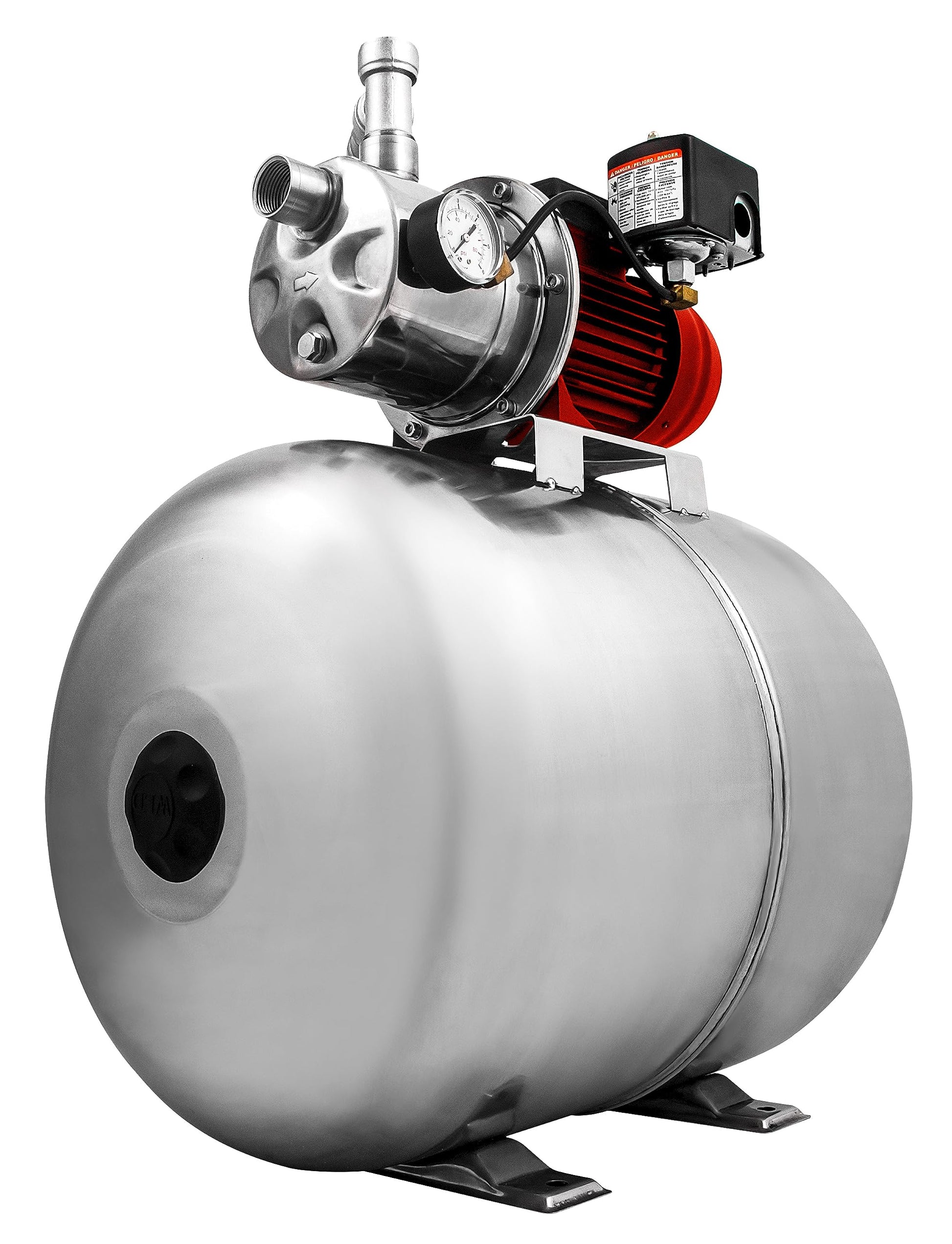

APPLICATIONS: ideal for drawing water from shallow wells (down to 25-feet) for rural homes, farms, and cabins; ANSI 372/NSF-61 Certified for safe drinking water

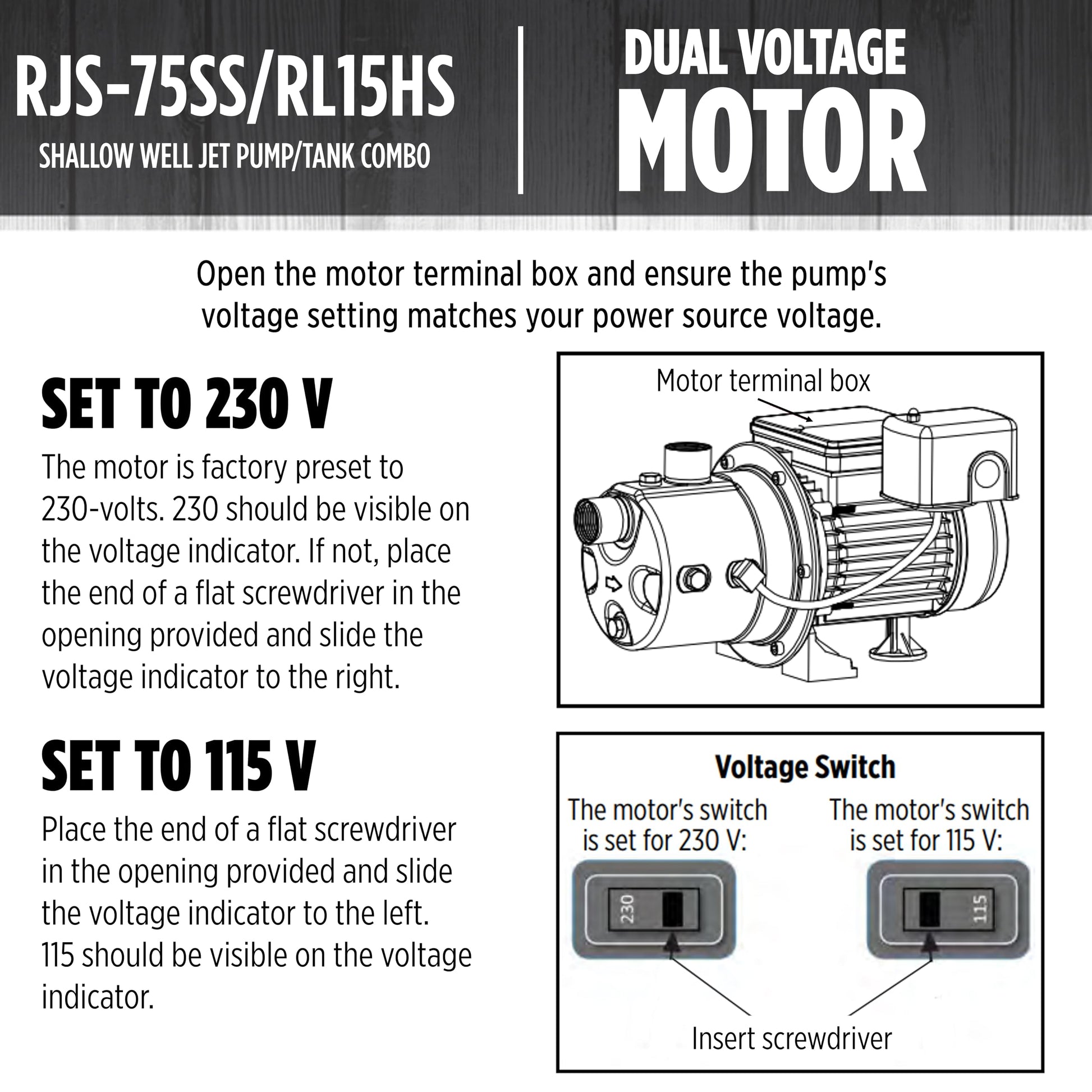

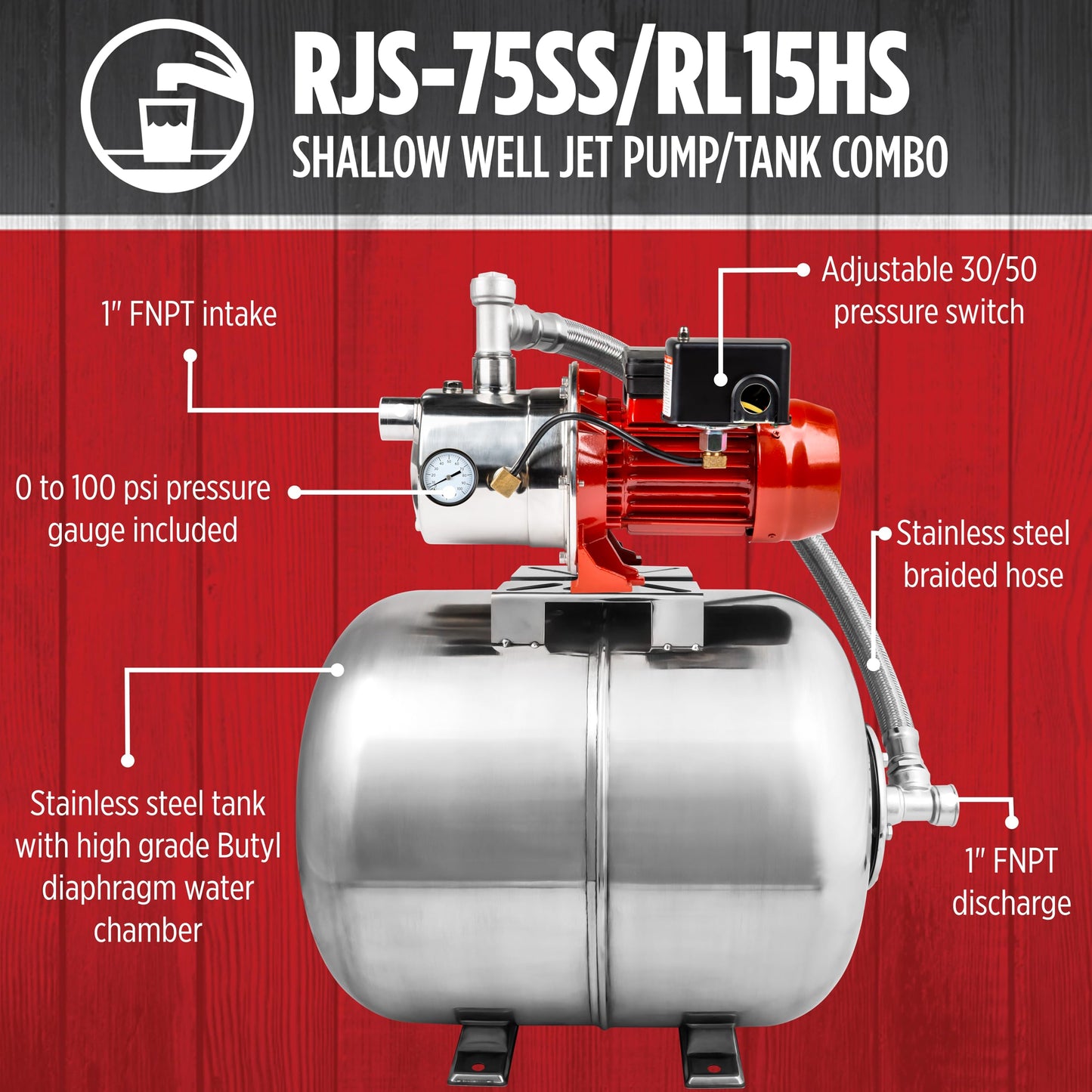

FACTORY ASSEMBLED: comes with pressure gauge and pressure switch simplifying installation; use with 115 or 230 volt power source; set to 230 volts but can be switched to 115 volts easily - see manual

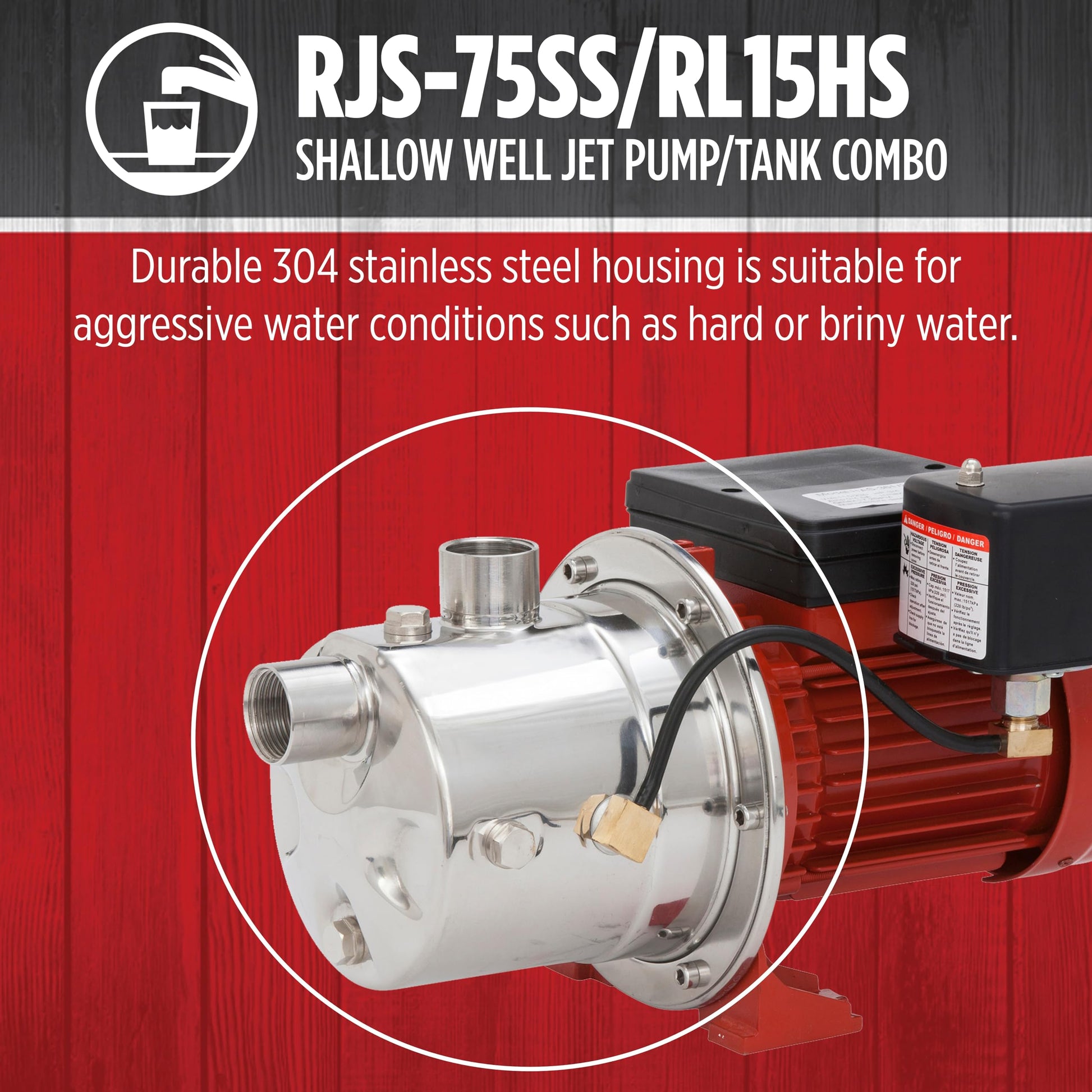

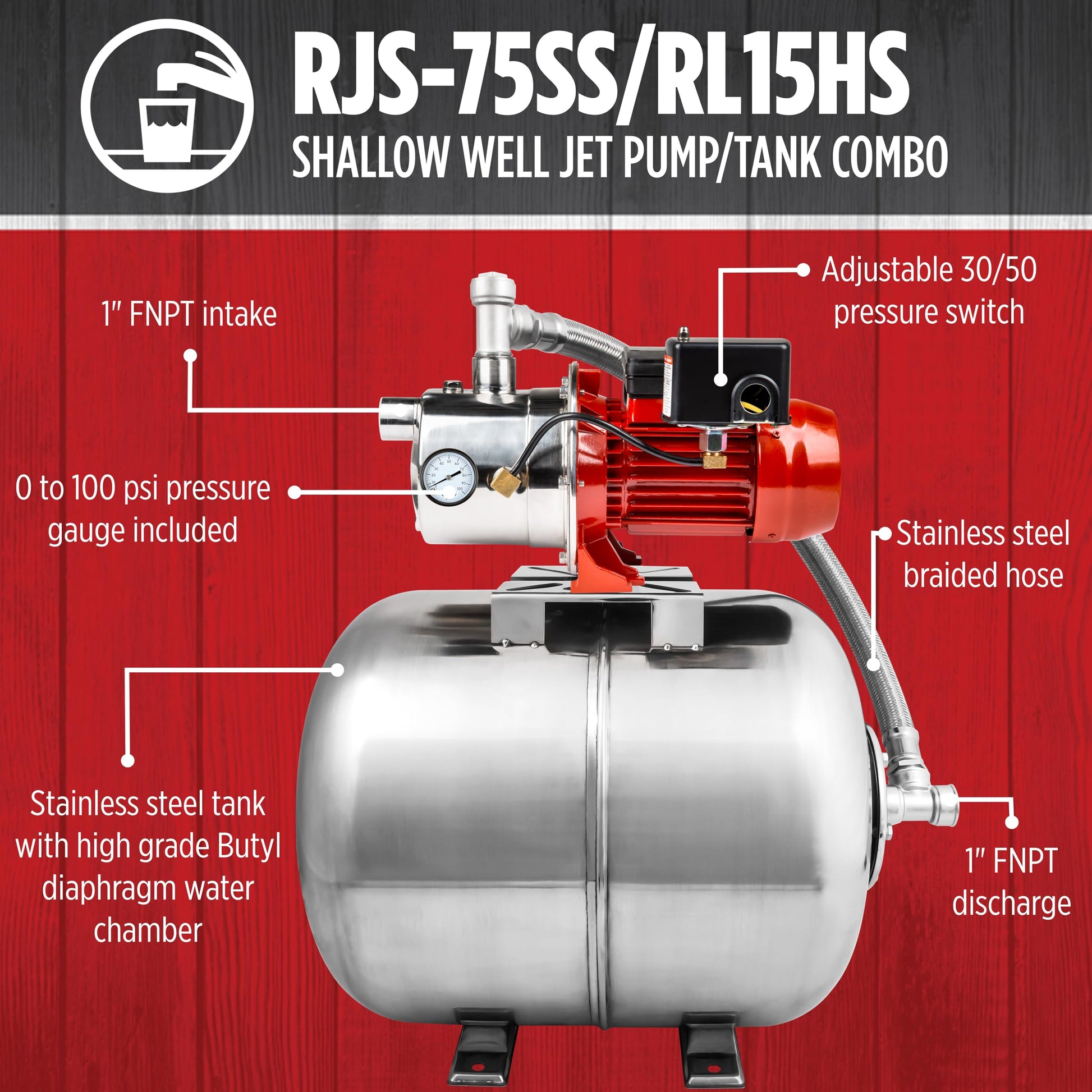

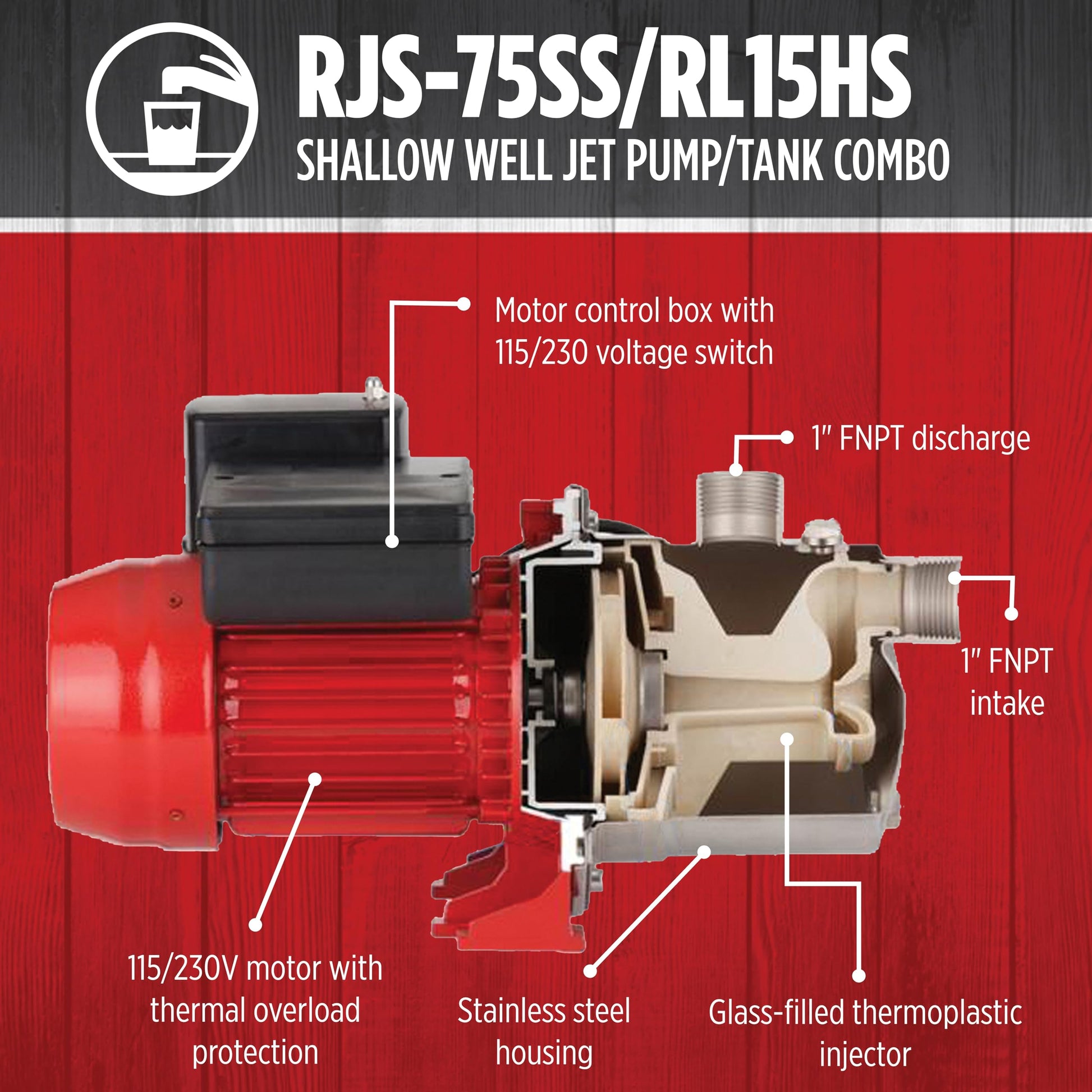

STAINLESS STEEL TANK AND PUMP CASING: more durable than cast iron and designed for aggressive water conditions; equipped with 1-inch FNPT threaded intake and discharge
15 US GALLON TANK; low profile, stainless steel pressure tank with high grade Butyl water chamber; adjust the pressure to 28 psi

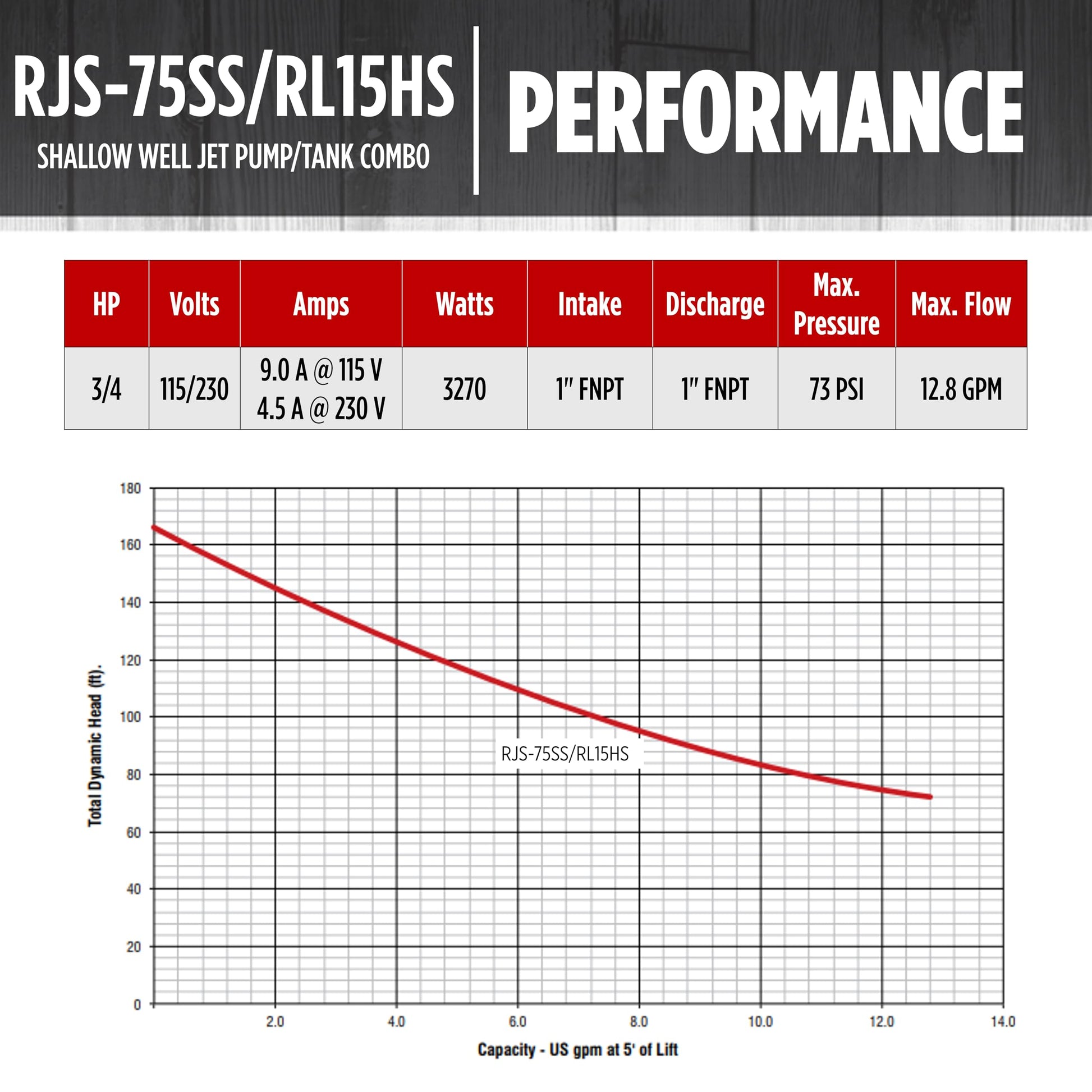

SPECIFICATIONS: 3/4 HP; 12.8 GPM at 30 PSI and 5-ft. suction lift; max pressure 73 PSI, 9.0 Amps at 115V; 4.5 Amps at 230 Volts; 3270 Watts, 15 gallon tank; max head 169-ft.; CSA listed in USA/Canada
