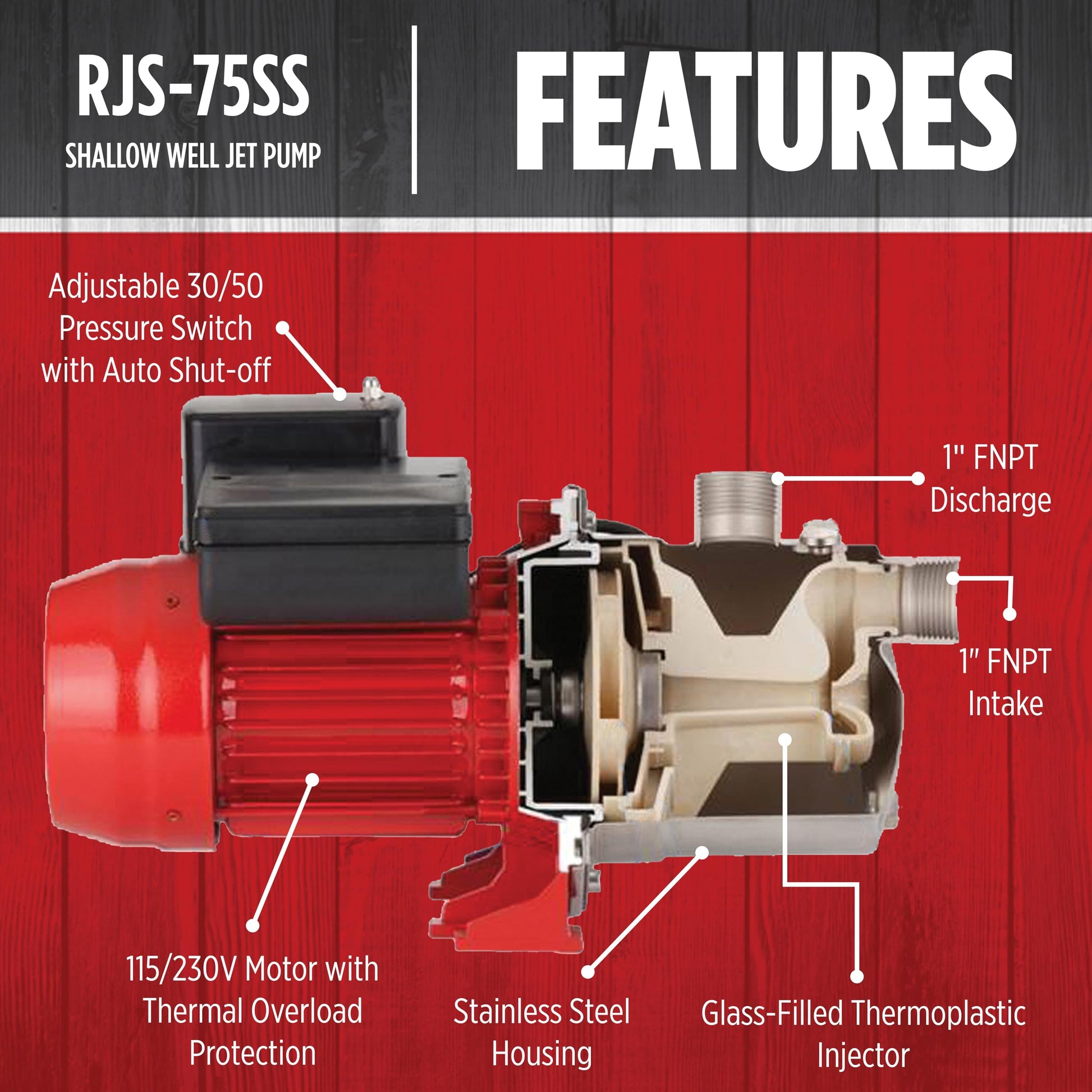

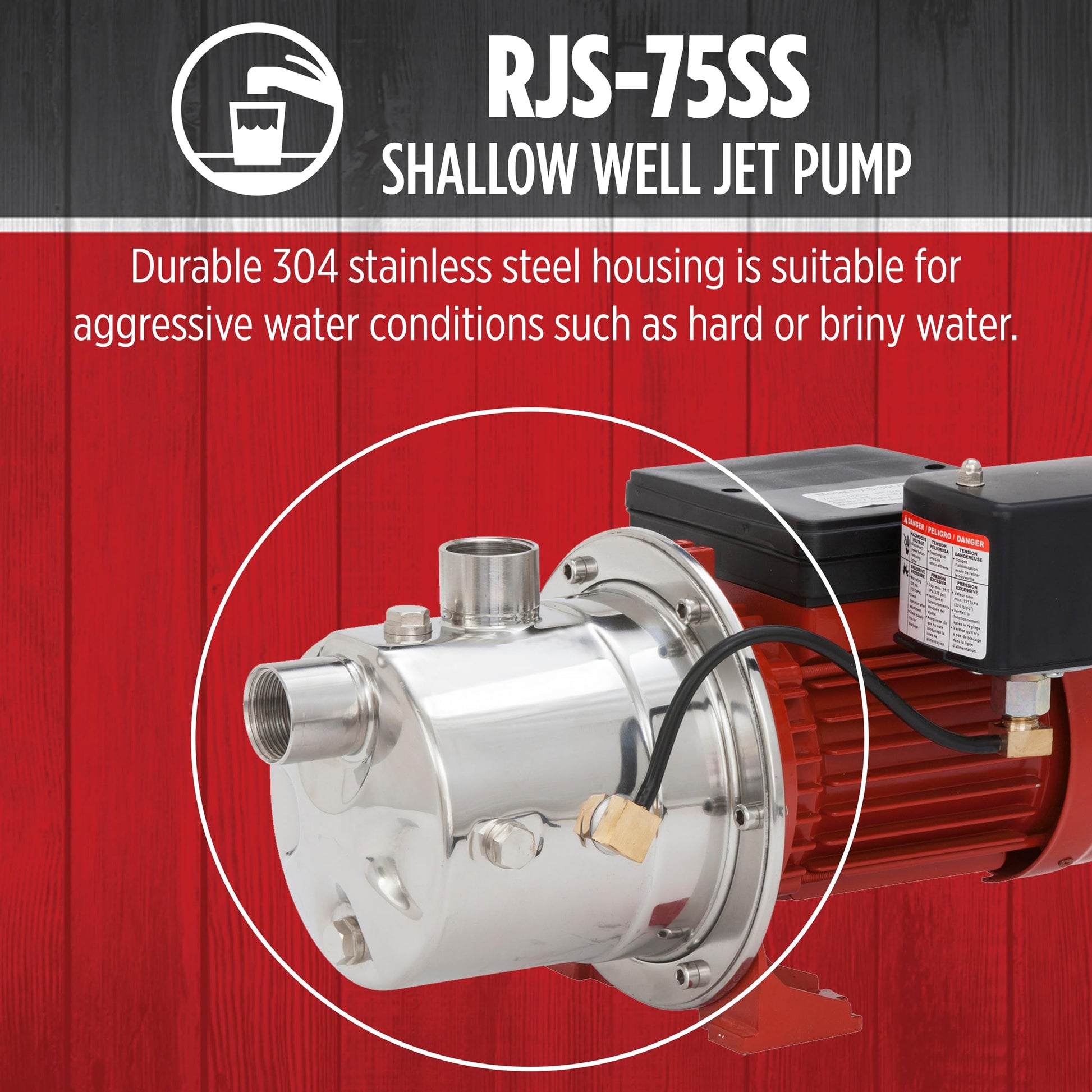

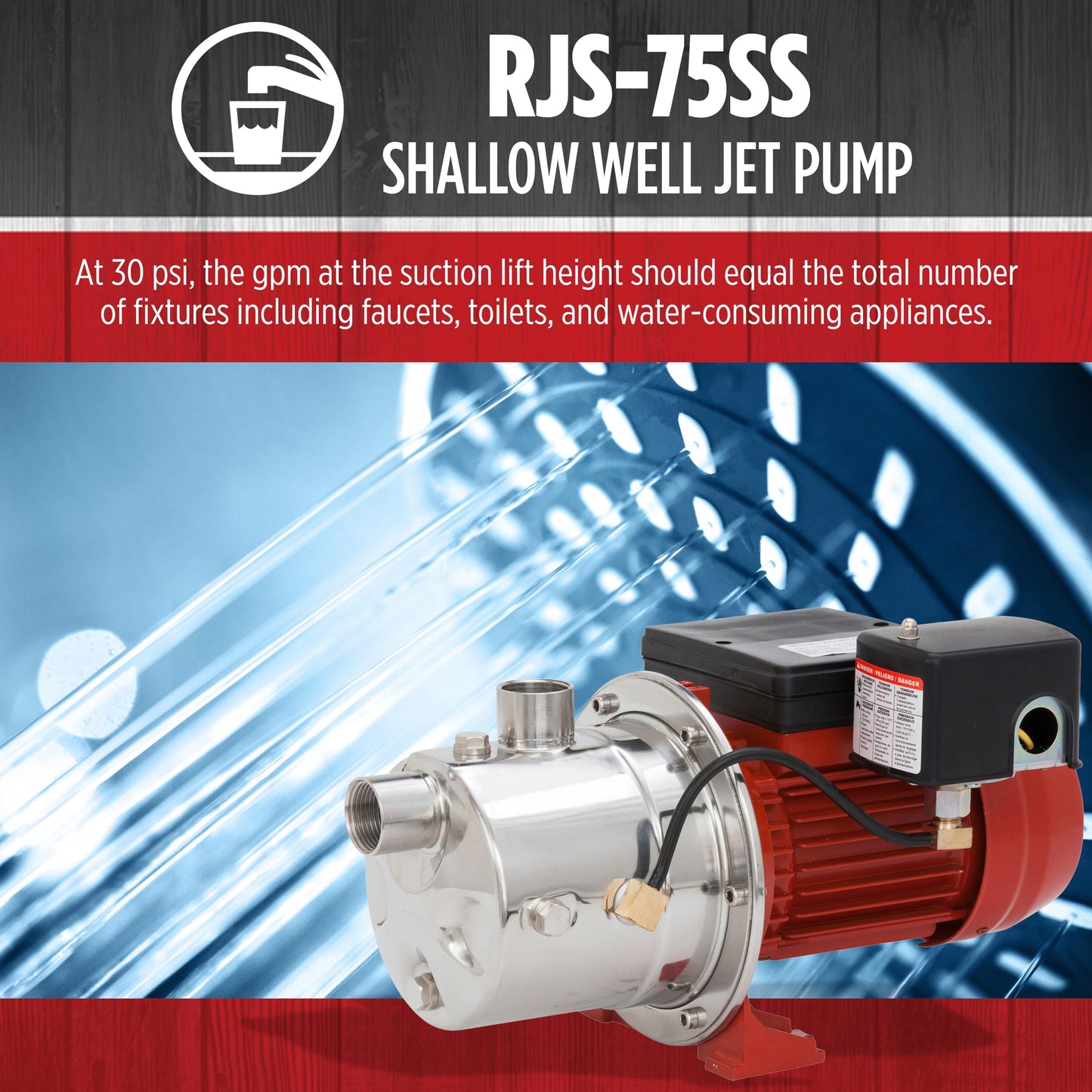

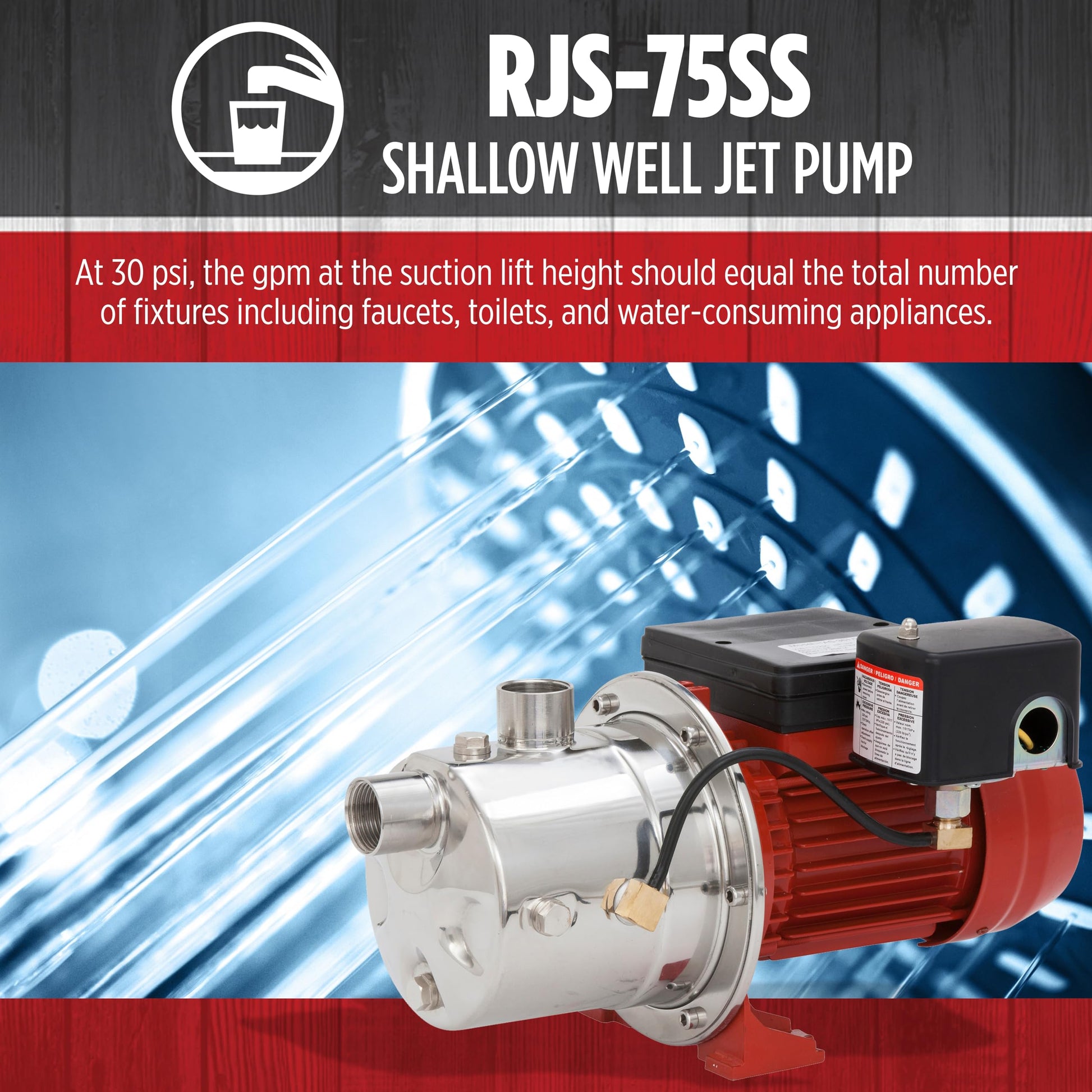

BUILT FOR AGGRESSIVE WATER CONDITIONS: Stainless steel pump housing is corrosion-resistant

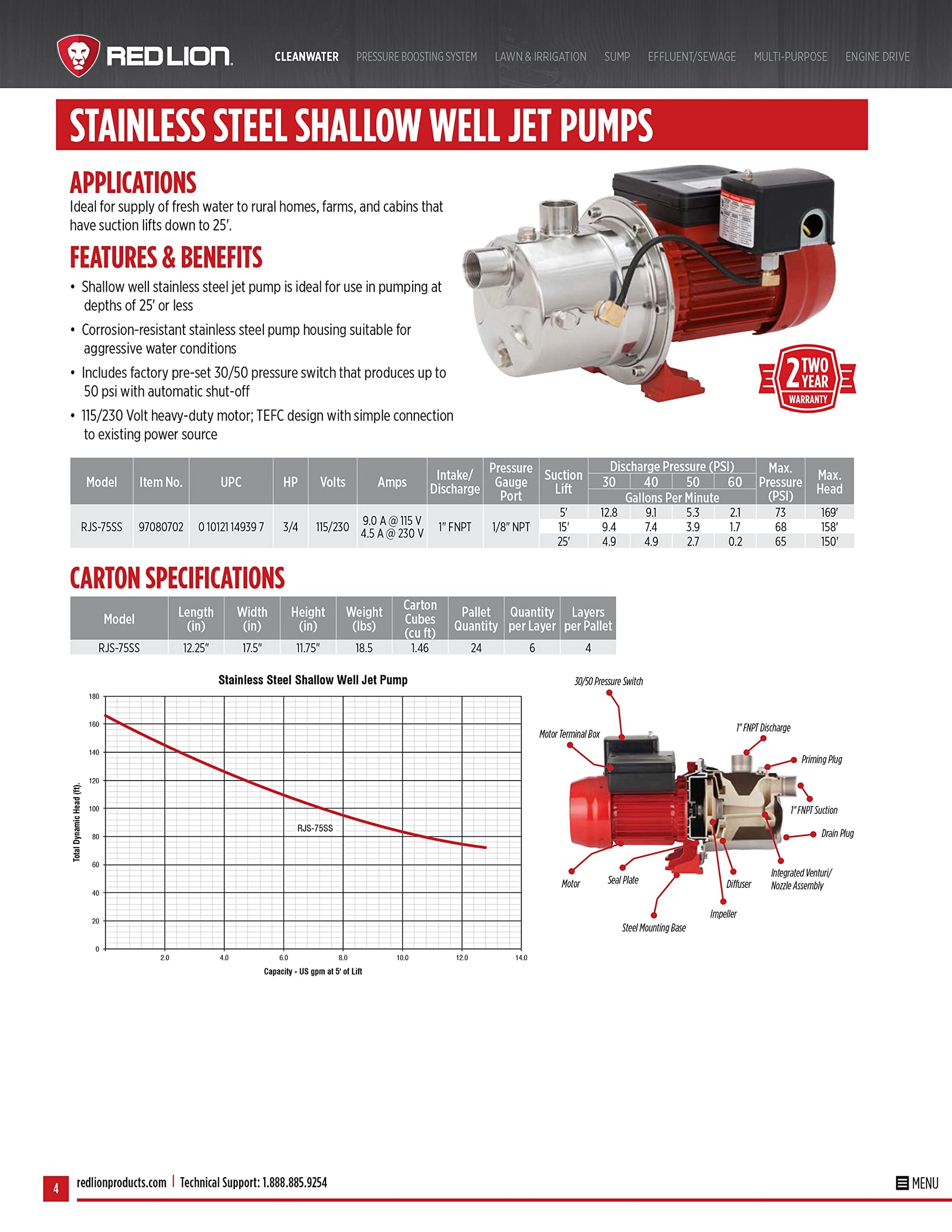

SHALLOW WELL JET PUMP: ideal for the supply of fresh water to rural homes, farms and cabins with suction lifts less than 25-ft
Includes factory pre-set 30/50 pressure switch - produces up to 50 PSI with automatic shut-off

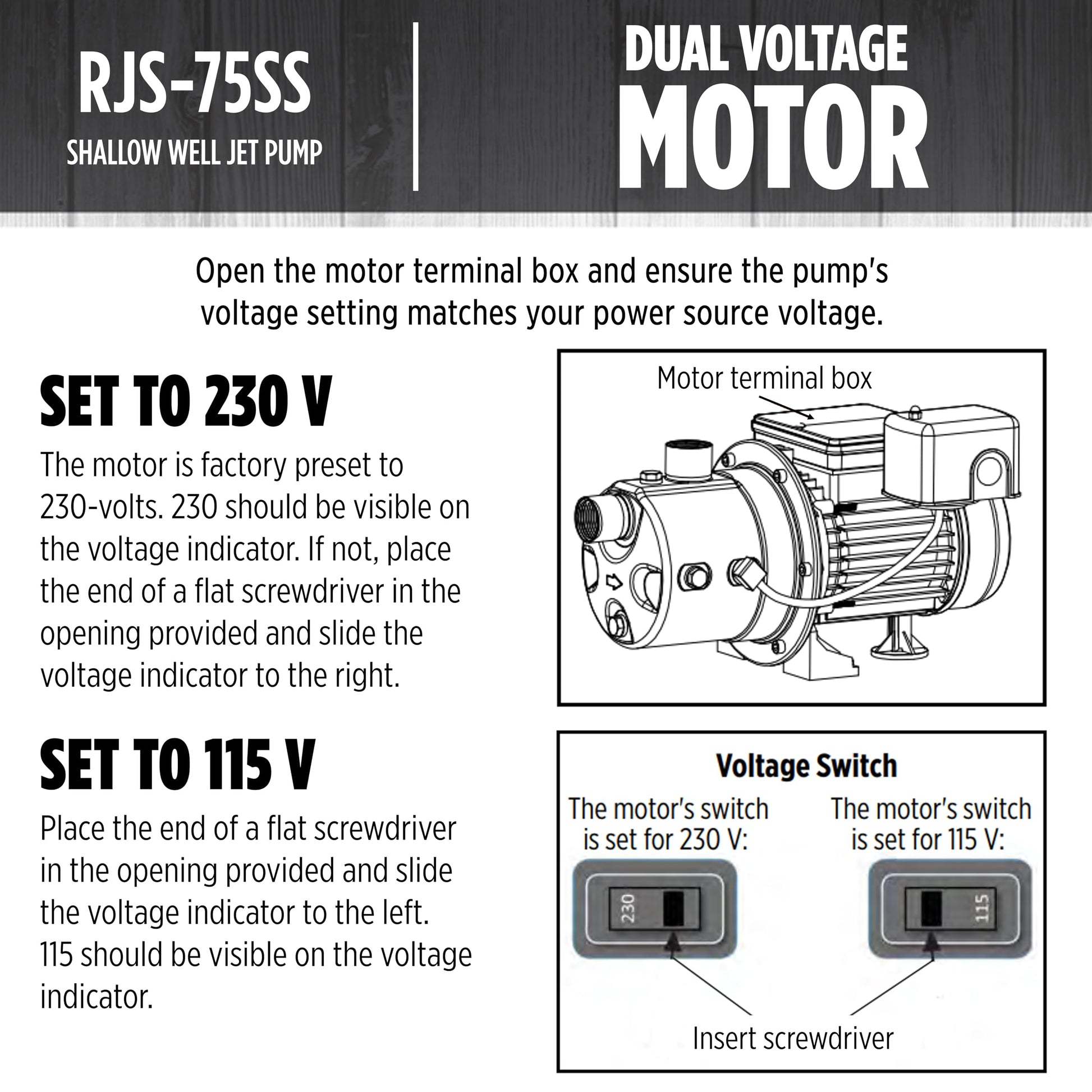

MOTOR SPECIFICATIONS: dual voltage (115/230 volts) thermally protected TEFC motor, factory set to 230 Volts but can be easily switched to 115 Volts; 9.0 Amps at 115 Volts; 4.5 Amps at 230 Volts

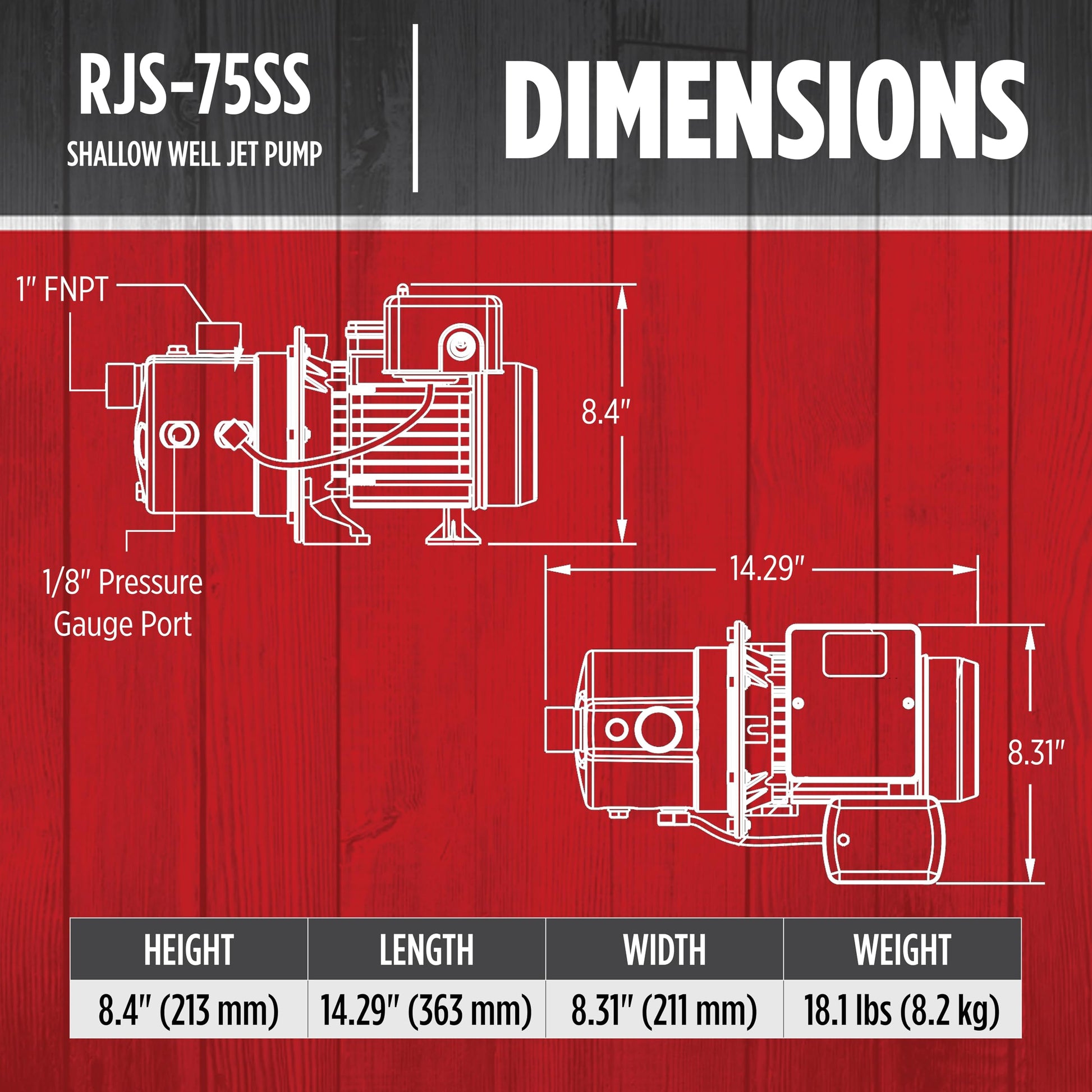

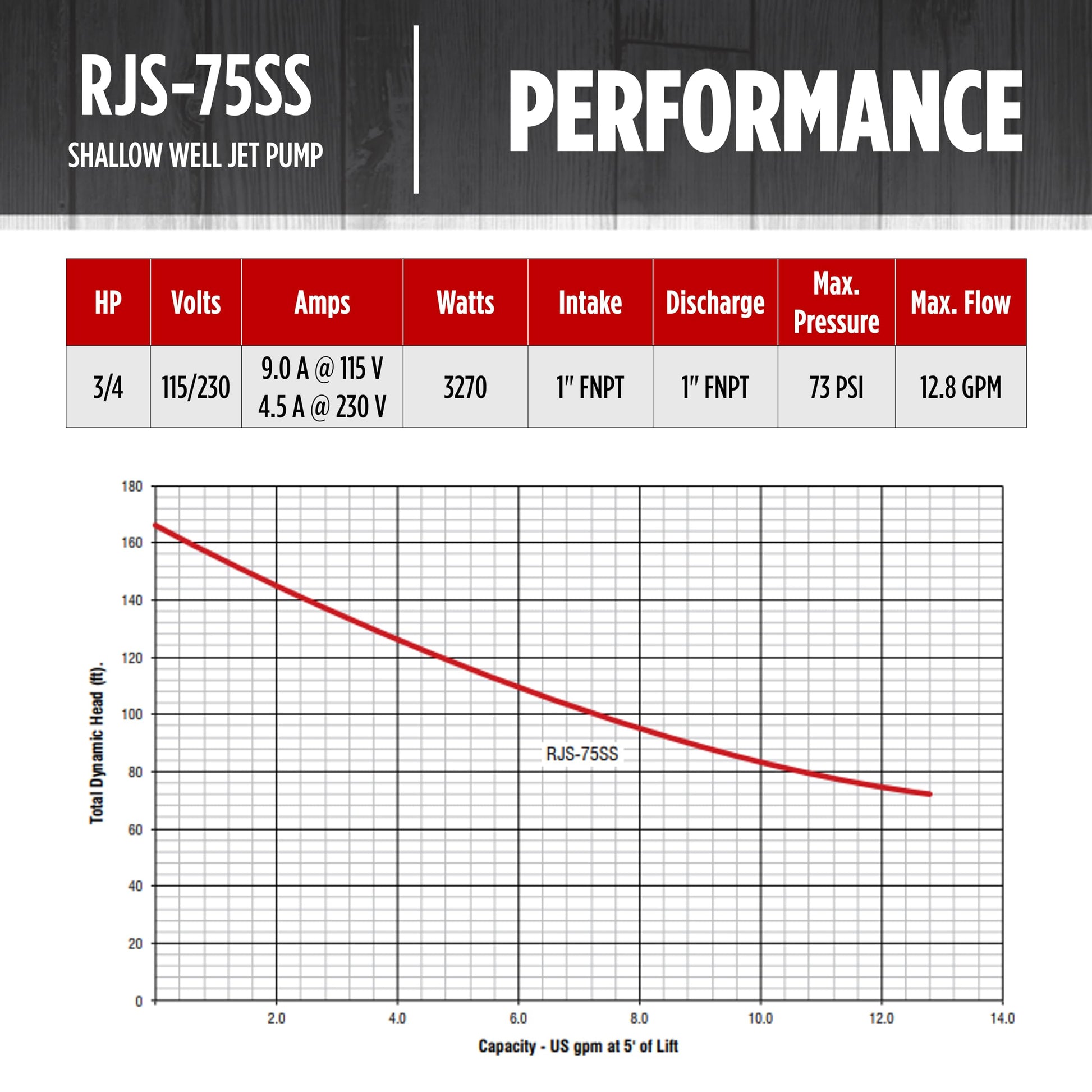

PUMP SPECIFICATIONS: 1-inch FNPT intake and discharge, 1/8-inch NPT pressure gauge port, 12.8 GPM at 5-foot suction lift and 30 PSI, maximum pressure 73 PSI, maximum head 169-ft
