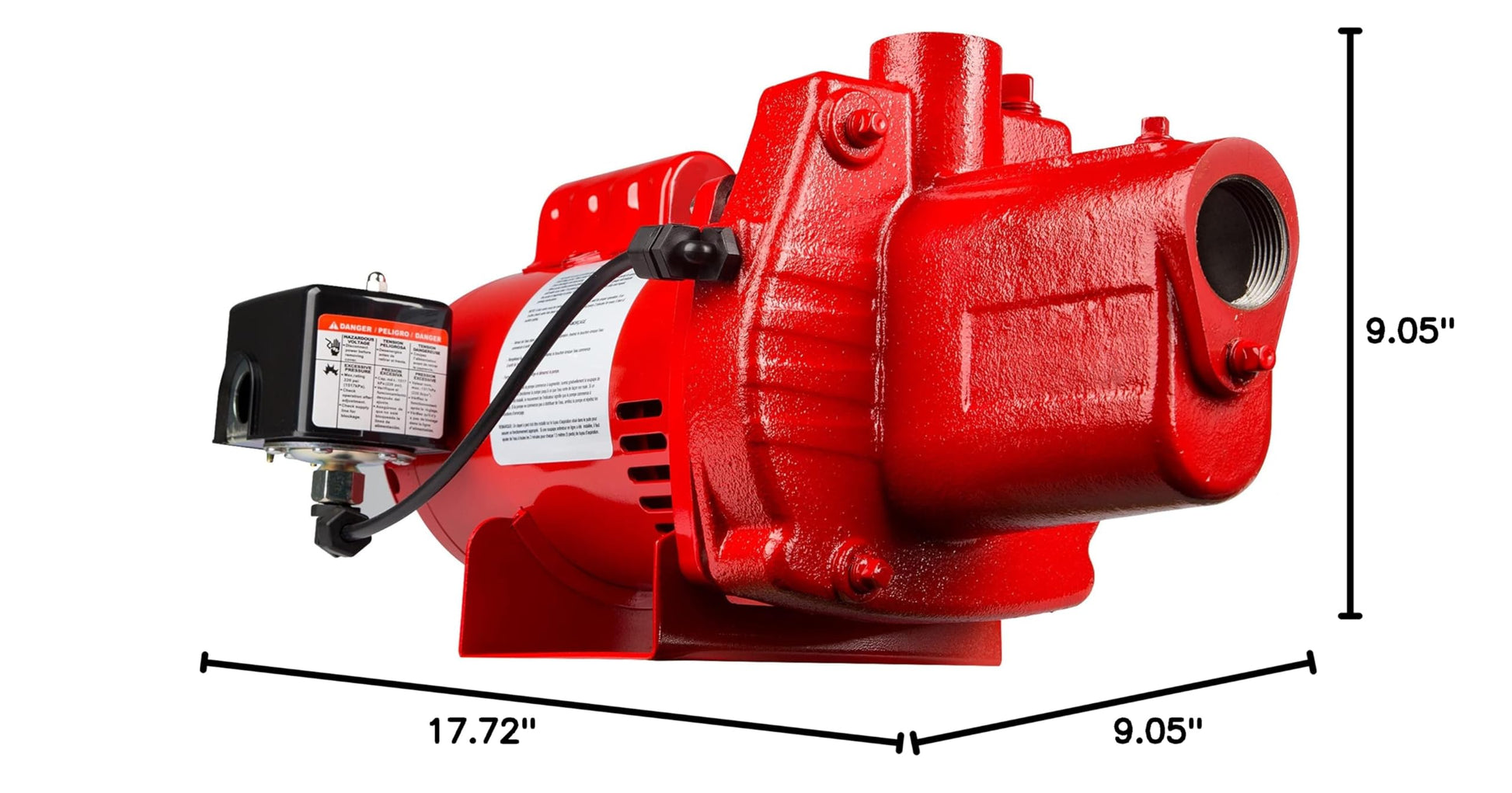

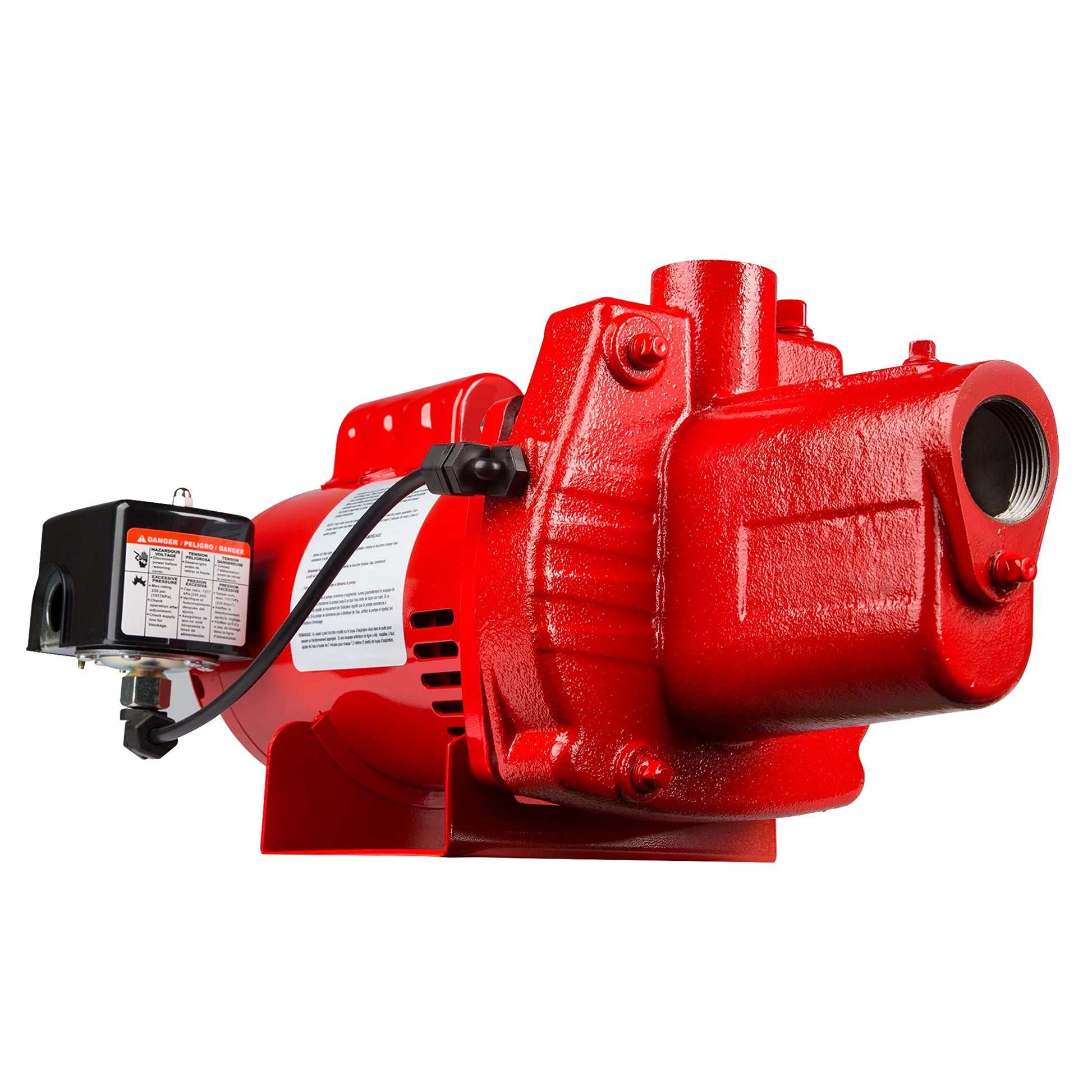

SHALLOW WELL JET PUMP: Red Lion Premium Cast Iron Shallow Well Jet Pump features a 1-1/4” FNPT suction intake and 1” FNPT outlet discharge; 3/4 HP pump can draw up to 16 gallons per minute

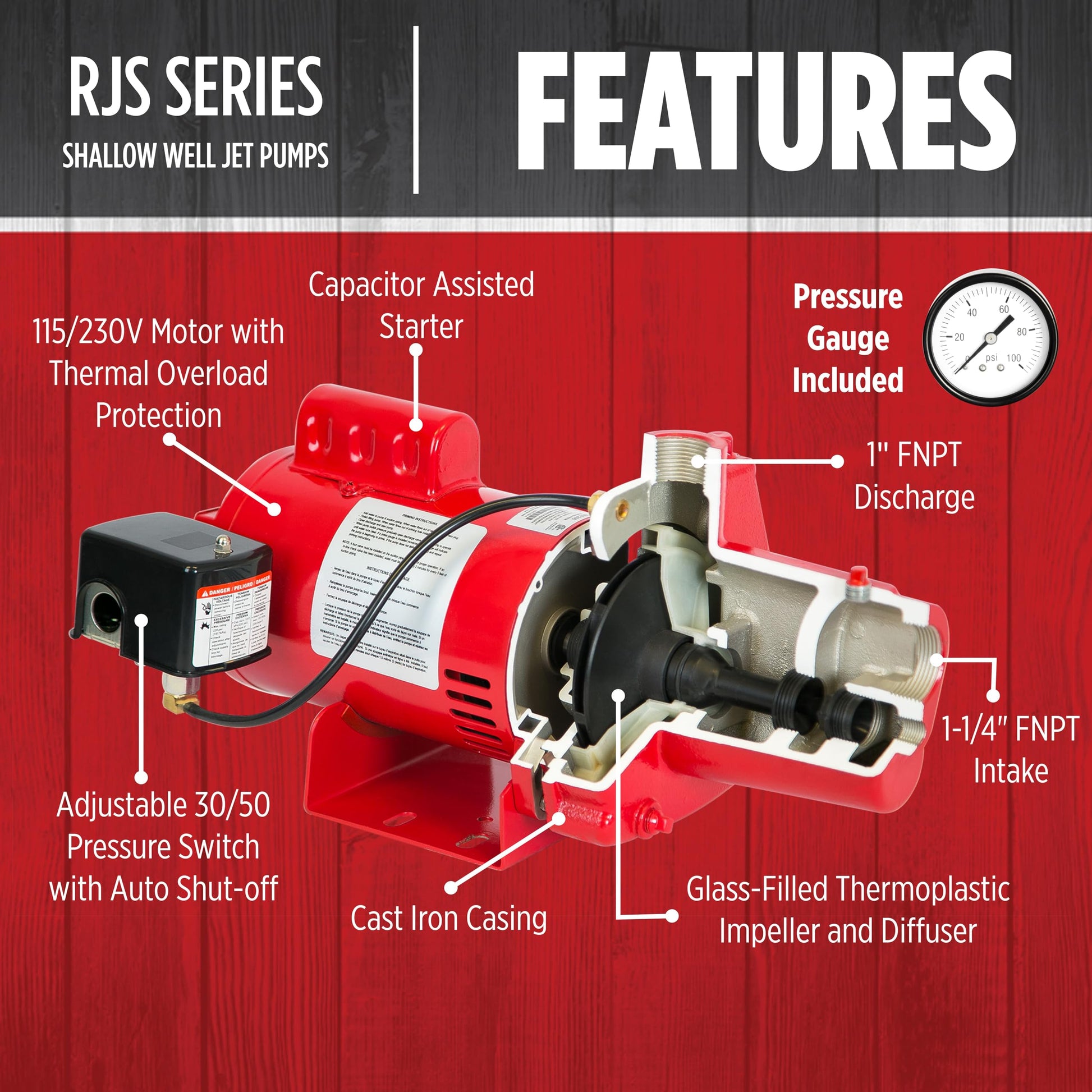

BUILT TO LAST: Rugged cast iron casing and volute for long life and high-efficiency; glass-filled thermoplastic impeller and diffuser for durability

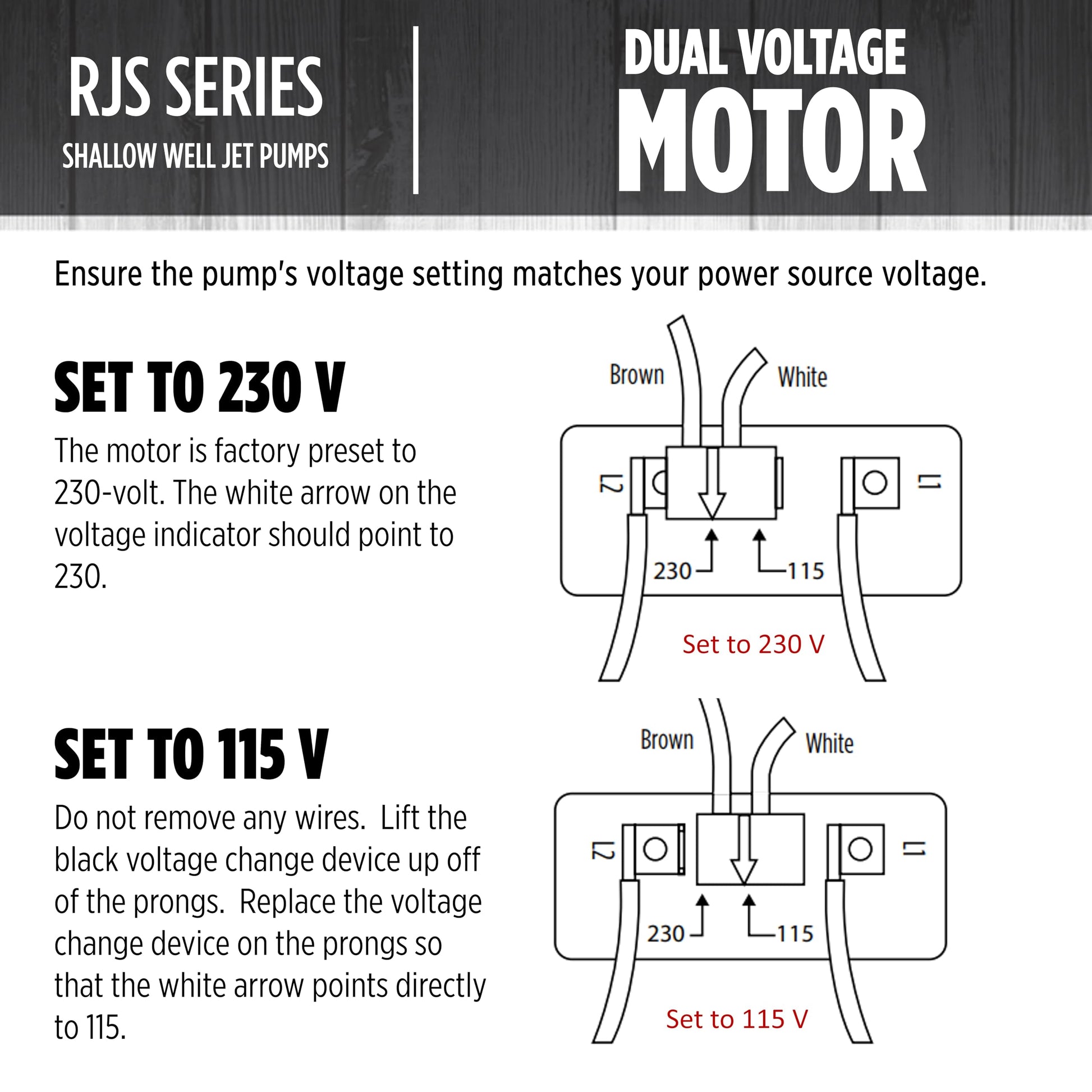

HEAVY DUTY MOTOR: runs on either 115 or 230 volts; voltage must be selected to match incoming power source; Includes a capacitor for increased starting power; CSA listed in USA and Canada

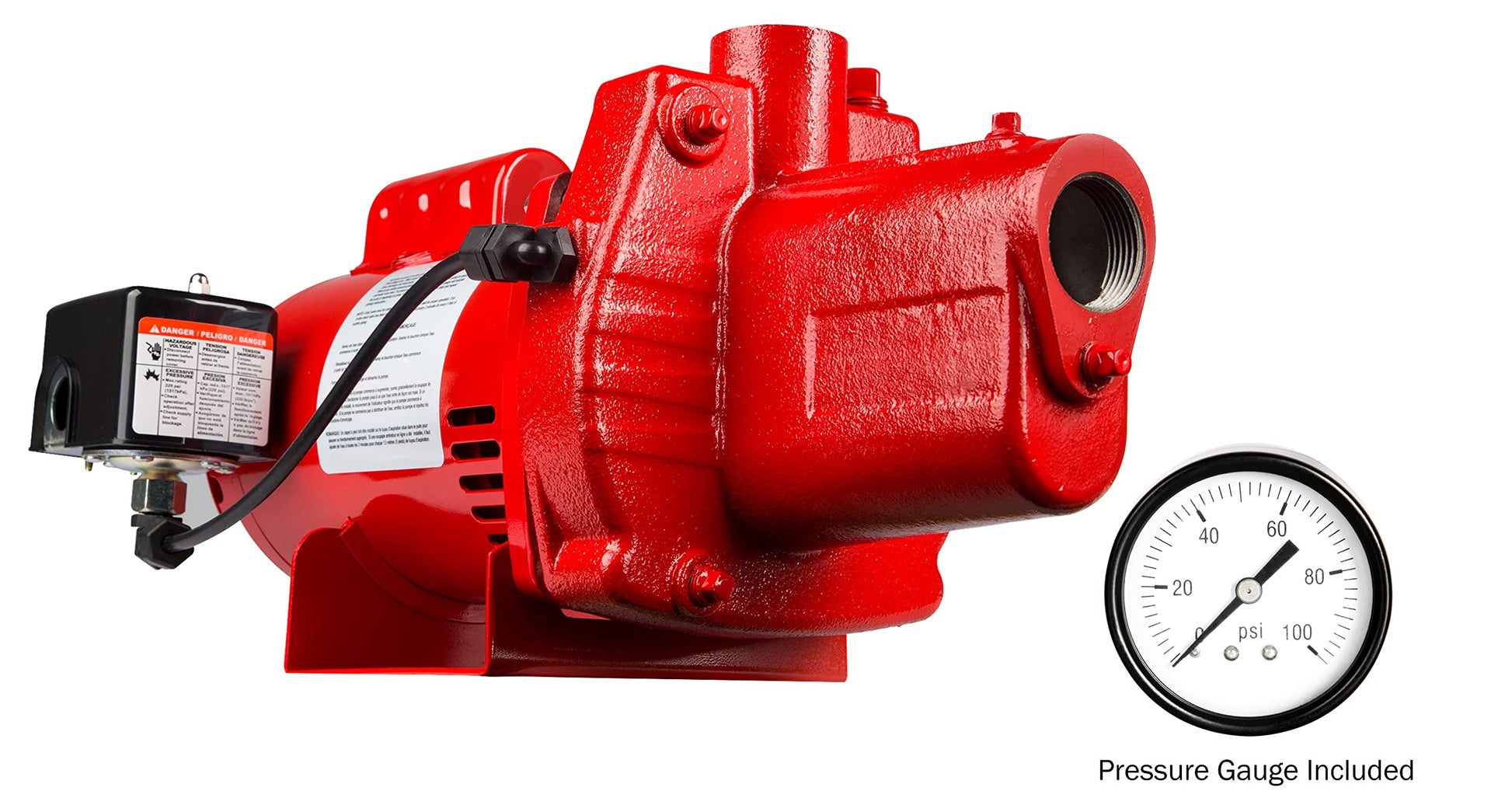

INCLUDES: a factory pre-set 30/50 pressure switch that produces a working maximum pressure of 50 PSI and pressure gauge

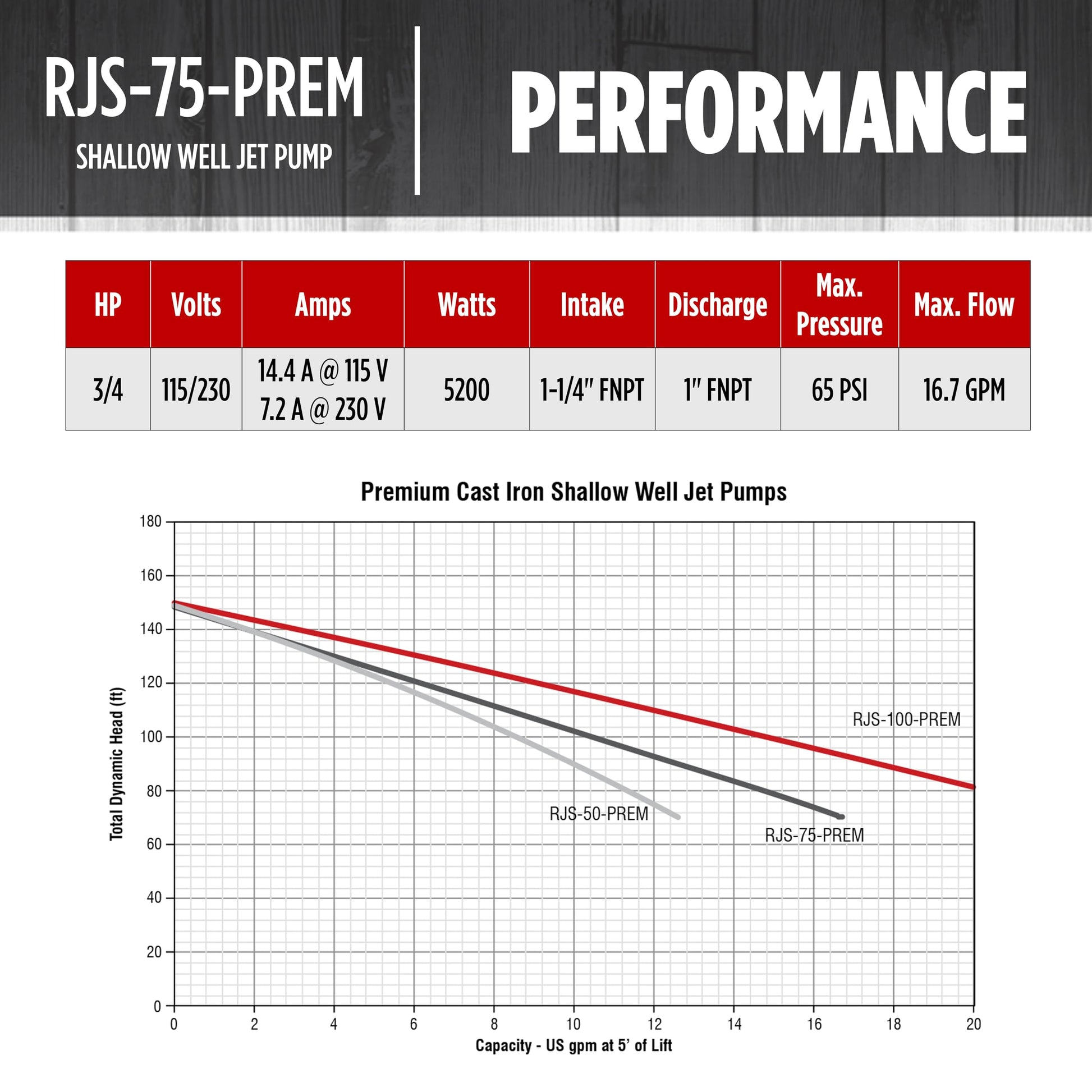

SPECIFICATIONS: 3/4 HP, 14.4 Amps at 115 Volts; 7.2 Amps at 230 Volts; 1-1/4-inch FNPT intake; 1-inch FNPT discharge; Max Pressure = 65 PSI; Max Head = 150 Ft.
