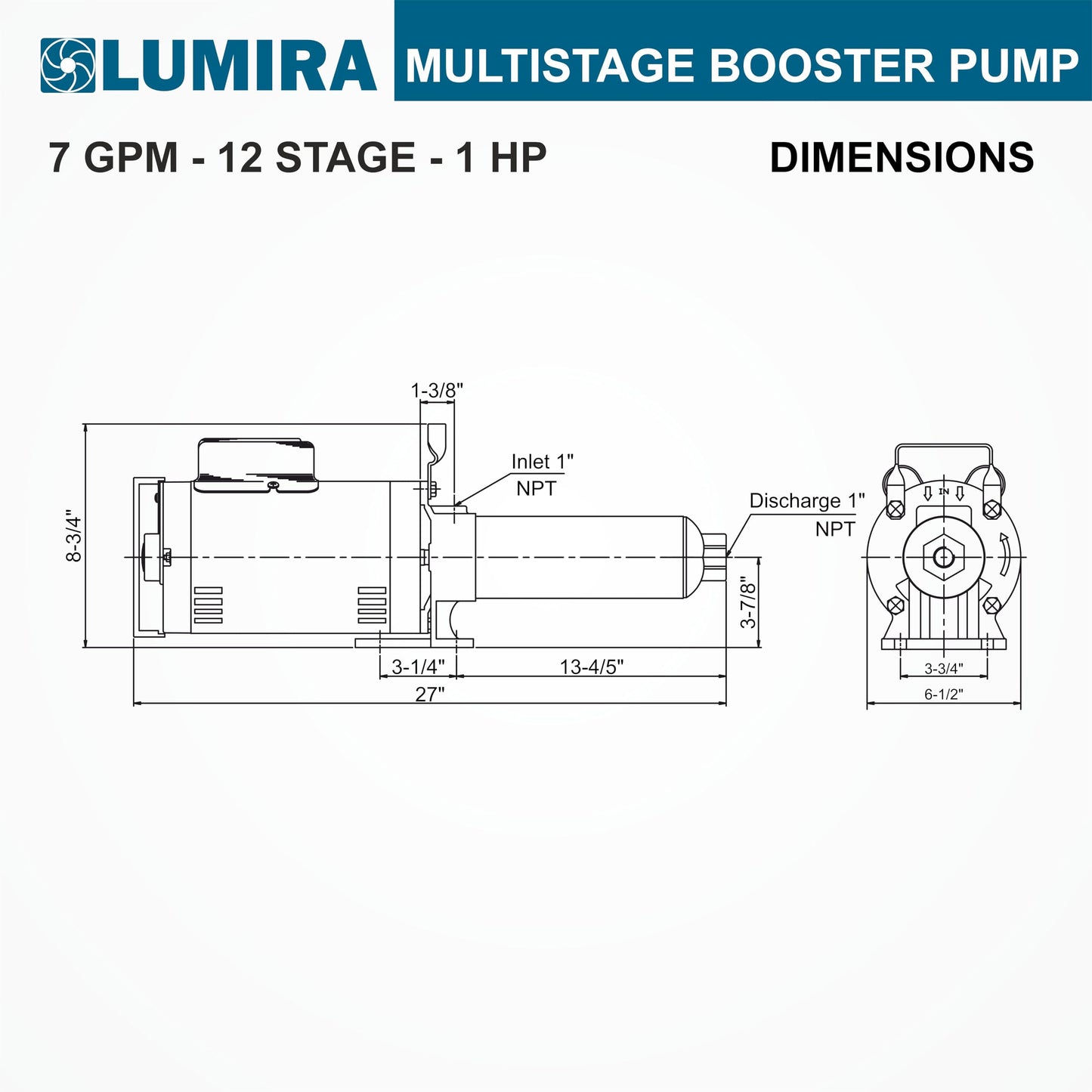

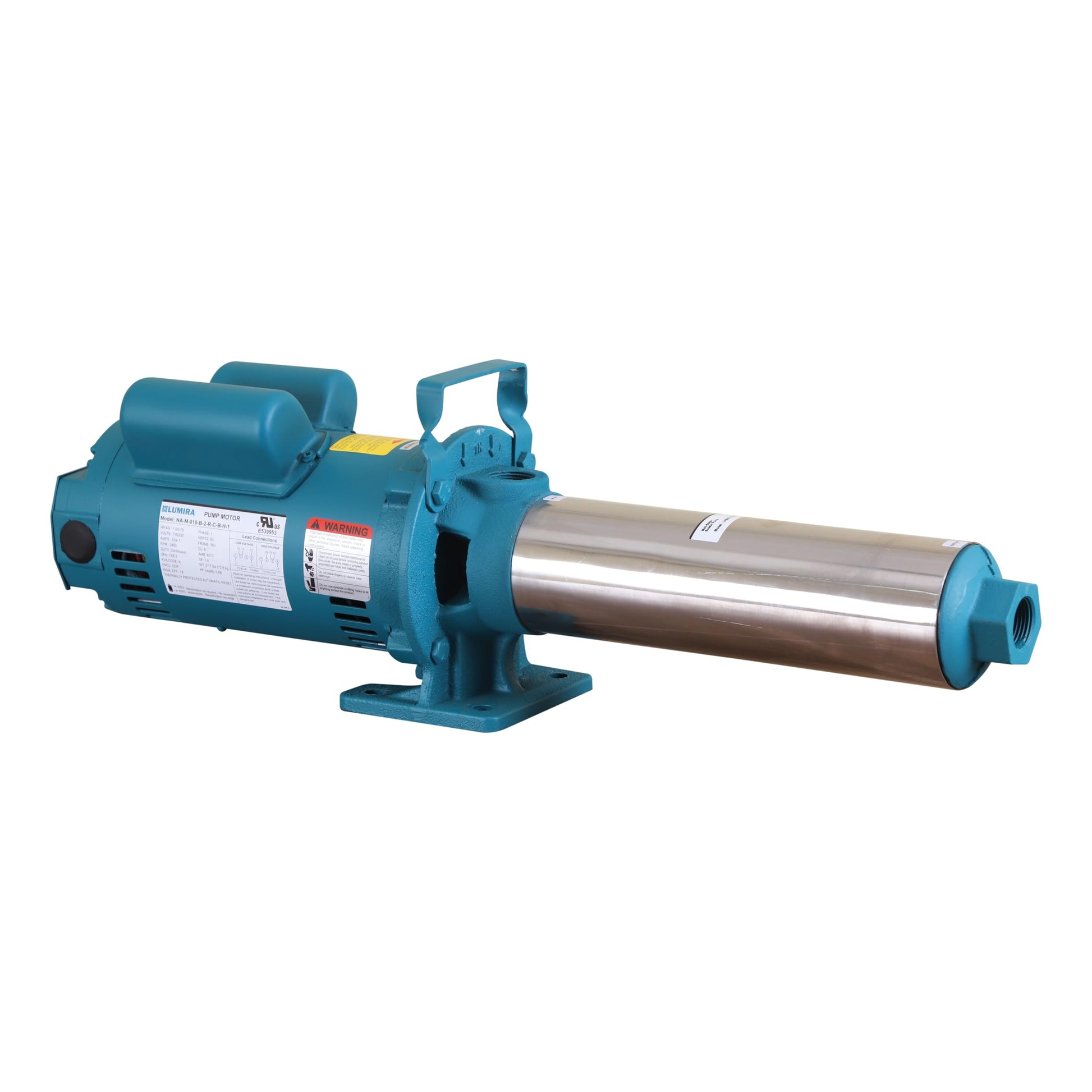

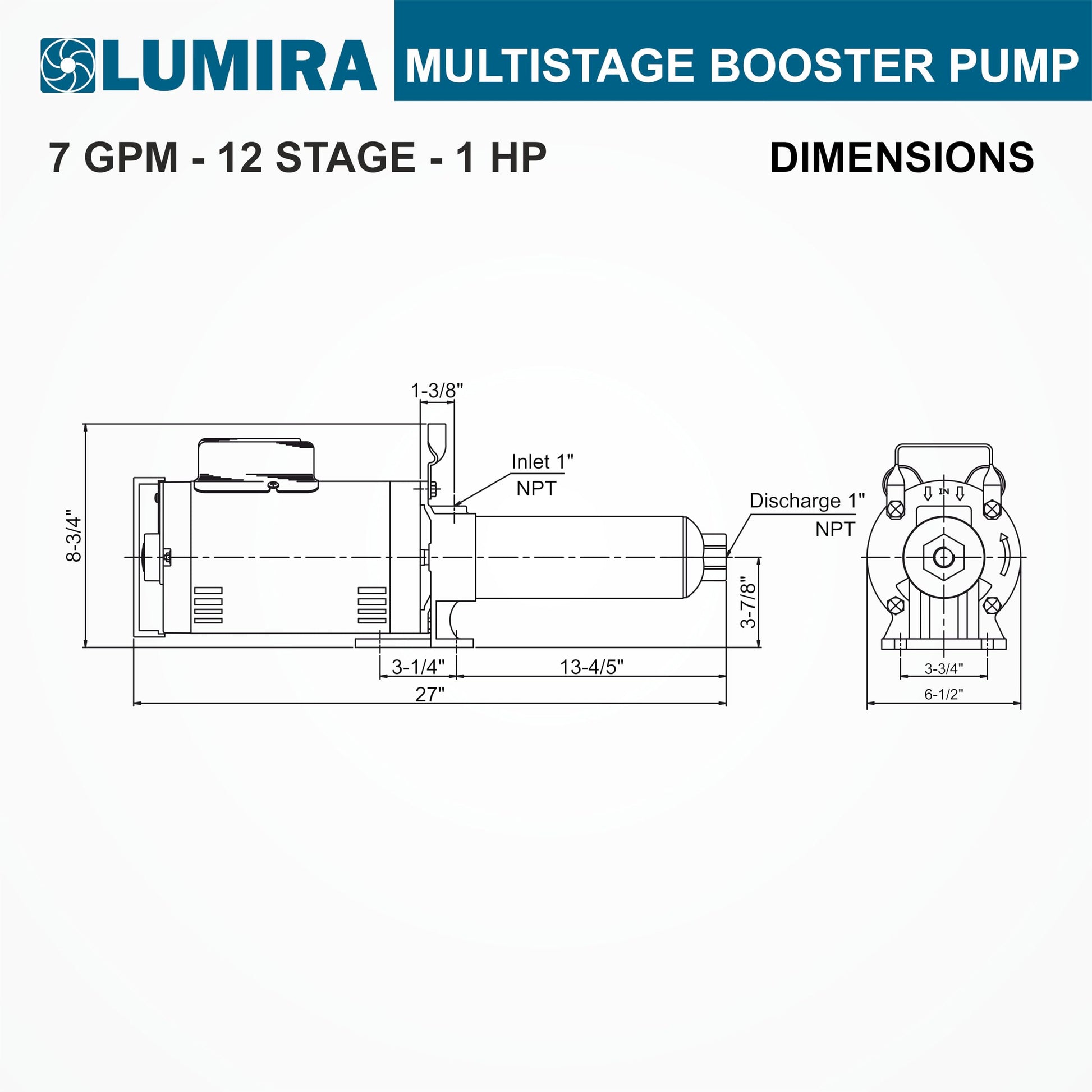

he Multi-Stage Booster Pump delivers a flow rate of 7 GPM @ 260 ft (112 psi.), powered by a 1 HP ODP motor. The inlet and outlet connections are 1" FNPT.

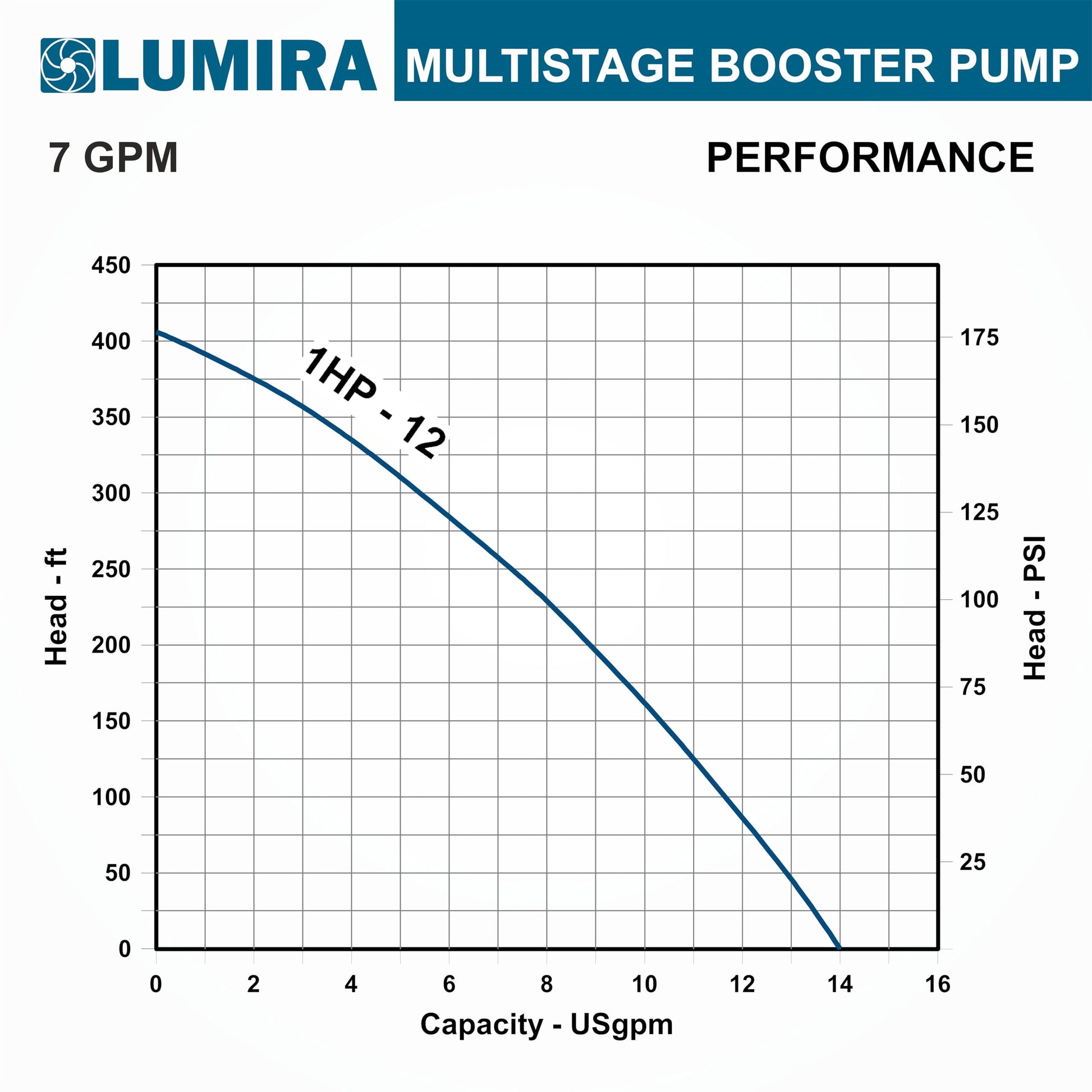

Maximum pressure is 390 ft (170 psi.) and maximum flow is 14 USgpm.

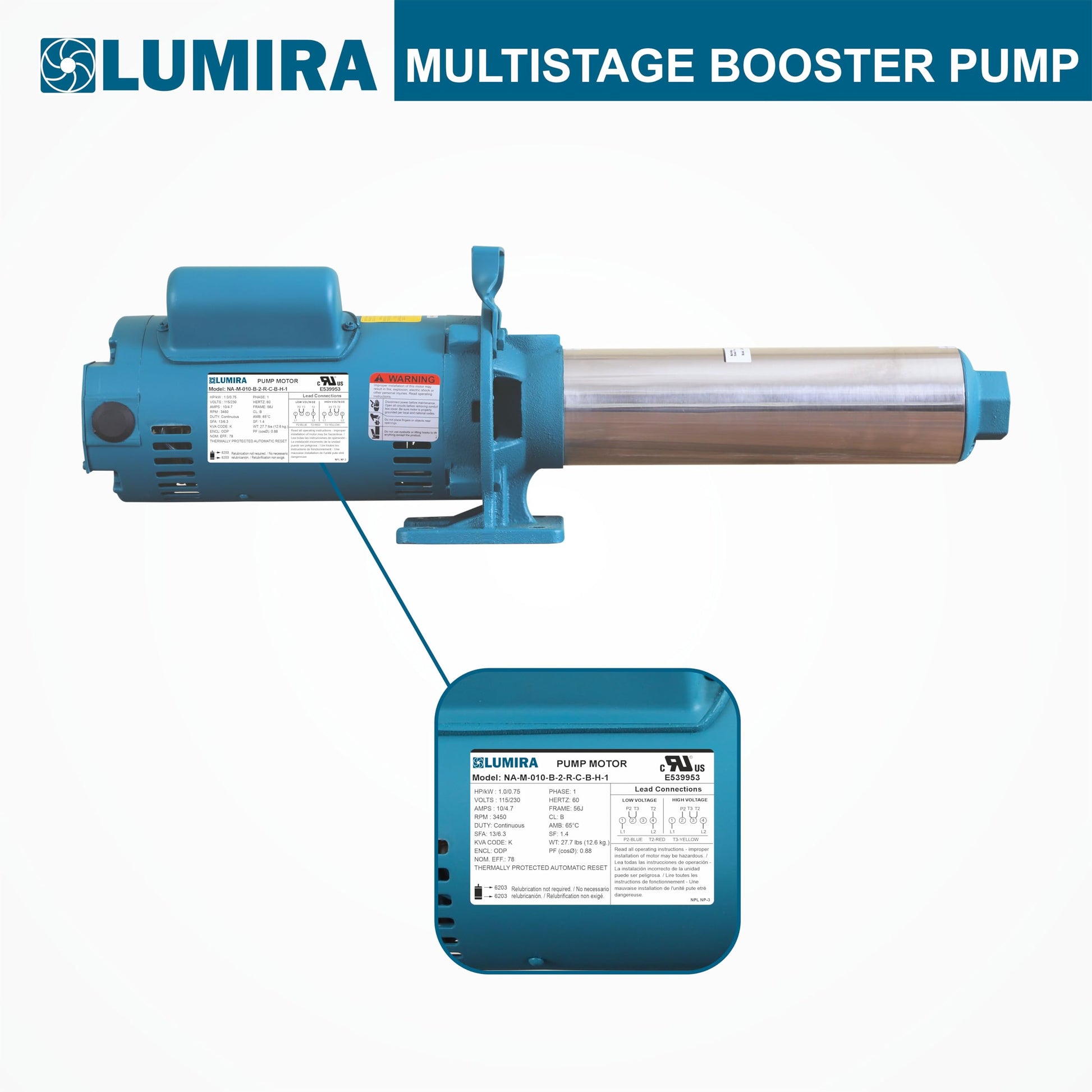

The pump is powered by 1 HP ODP, 1 phase, 115/230 Volts, 60 Hz, 56J frame, UL recognized motor.
The pump features cast iron inlet and outlet casings. The pump outer jacket, shaft and bowl casing is of 304 stainless steel. The impeller and diffusor are of glass reinforced engineering composite material.
The pump is suitable for following booster applications: 1. For water supply as well as pressurised washing in residential, commercial and industrial applications. 2. As a high pressure pump in Reverse Osmosis or filtration treatment for Water. 3. Industrial cooling water circulation.
